STMICROELECTRONICS LPS27HHWTR

Pressure Sensor, Absolute, 26 kPa, 126 kPa, 1.7 V, 3.6 V

STMICROELECTRONICS LPS27HHWTR
×

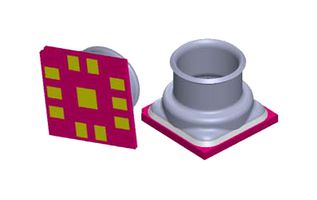

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
LPS27HHWTR
Order Code:
3381461RL
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
LPS27HHWTR   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

LPS27HHWTR is an ultra-compact piezoresistive absolute pressure sensor that functions as a digital output barometer. This device comprises a sensing element and an IC interface that communicates through I²C, MIPI I3CSM or SPI from the sensing element to the application. The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST. It is used in applications such as altimeters and barometers for portable devices, GPS applications, weather station equipment, sports watches, e-cigarettes, water depth monitoring, gas metering.
  • Pressure sensor with water-resistant package, potting gel & grounded metal cap
  • 260 to 1260hPa absolute pressure range, embedded temperature compensation
  • 24-bit pressure data output, ODR from 1Hz to 200Hz
  • SPI, I²C or MIPI I3CSM interfaces, embedded FIFO
  • Interrupt functions: data-ready, FIFO flags, pressure thresholds
  • Supply voltage range from 1.7V to 3.6V
  • Absolute accuracy over temperature is 0.5hPa typical at (VDD = 1.8V, T = 25°C)
  • Temperature coefficient offset is 0.75Pa/°C typical at (VDD = 1.8V, T = 25°C)
  • Supply current is 4μA typical at (VDD = 1.8V, T = 25°C)
  • Operating temperature range from -40°C to +85°C, CCLGA-10L package

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Absolute

:
-mV/kPa

:
26kPa

:
126kPa

:
1.7V

:
3.6V

:
CLGA

:
10Pins

:
-40°C

:
85°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Packaging type Re-reel
"

Additional packaging options available
Cut Tape :3381461 Check stock

2,137 In stock Need more?

2,137 UK stock available for 3-4 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

NT$152.97

Pricing is unavailable. Please contact customer services.

Price for:
Each (Supplied on Cut Tape)
Multiple: 1 Minimum: 10
