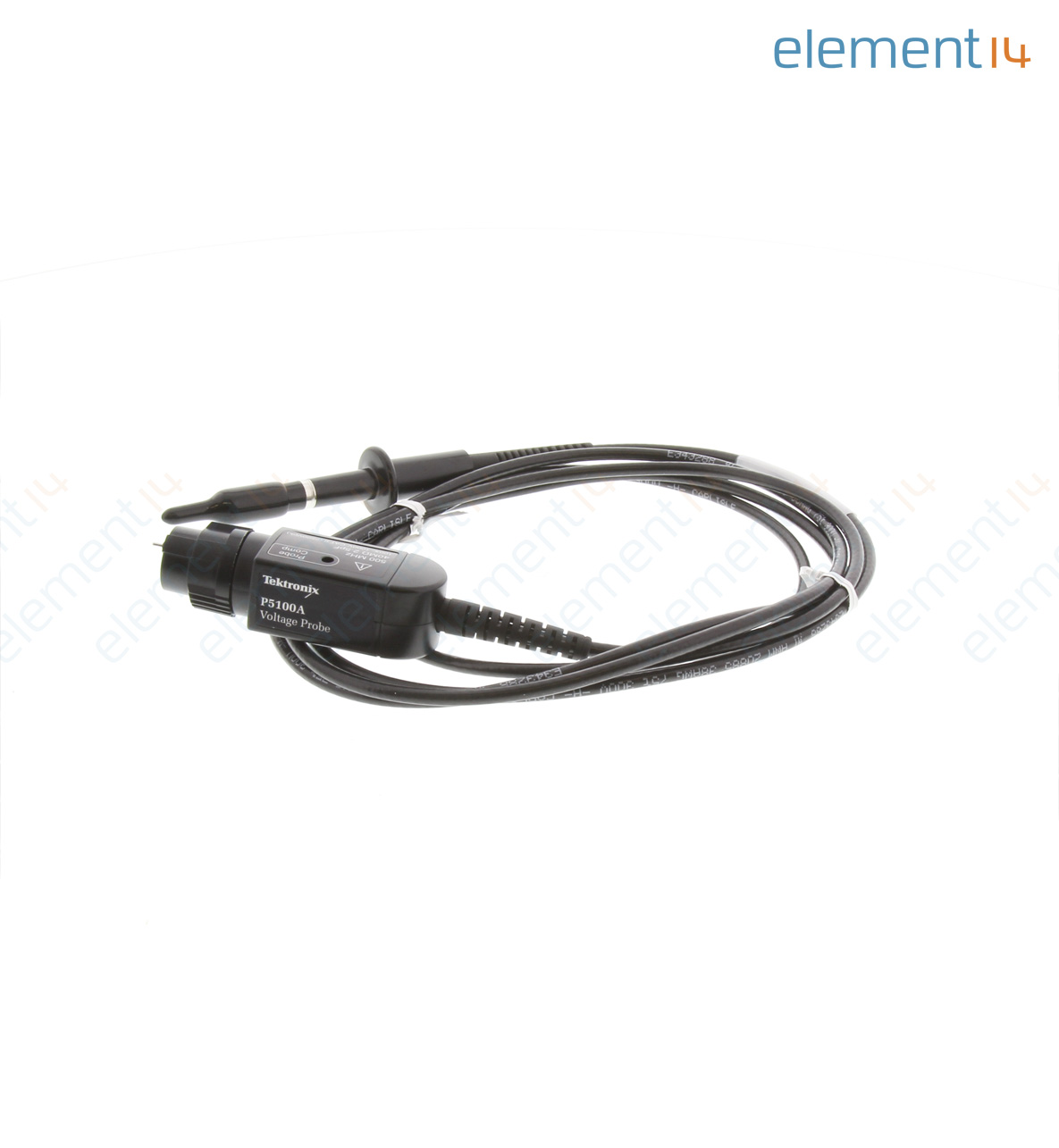

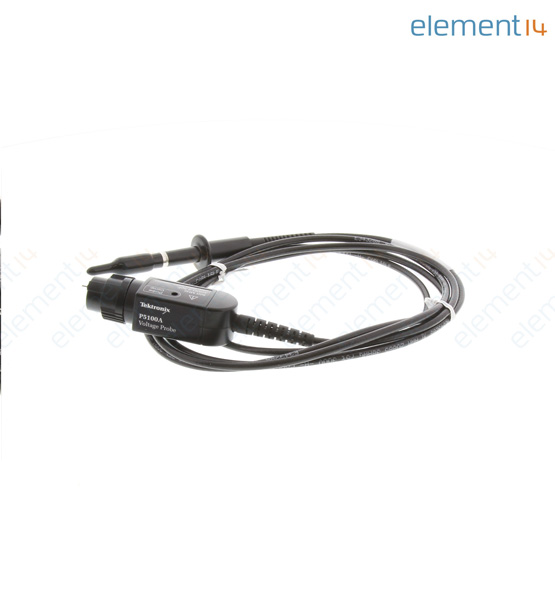

TEKTRONIX P5100A
Oscilloscope Probe, High-Voltage Passive Probe, 500 MHz, 2.5 kV, 100:1
- Manufacturer:
- TEKTRONIX TEKTRONIX
- Manufacturer Part No:
- P5100A
- Order Code:
- 1877504
-
- Technical Datasheet:
- P5100A Datasheet
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- High-Voltage Passive Probe
- :
- 500MHz
- :
- 2.5kV
- :
- 100:1
- :
- Tektronix Digital Oscilloscopes
- :
- P5100A
Technical Documents (3)
Product Overview
The P5100A from Tektronix is a 500MHz passive high voltage probe. It is a safe high voltage probe solutions for ground referenced voltage testing. The P5100A low input capacitance probe is designed for higher frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7pF to 30pF. A variety of screw on accessories provides easy connection to device under test.
- DC to 500MHz bandwidth
- Nominal length of 2m
- 100X attenuation
- Rise time is typically less than 700ps
- Maximum input voltage (DC or RMS) of 2.5KV peak and 1000Vrms (CAT II)
Applications
Test & Measurement, Power Management
Contents
P5100A oscilloscope probe, Large hook tip (013-0389-xx), Small hook tip (013-0388-xx), 6" ground lead (196-3526-xx), 18" ground lead (196-3527-xx), Ground spring (214-5299-xx), Crocodile clip (344-0461-xx), Adjustment tool (003-1433-xx), Colour bands (016-1886-xx), Instruction manual.
Footnotes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
