FSCEX 10000PF 1%63V

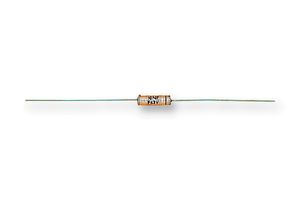

General Purpose Film Capacitor, Film / Foil PS, Axial Leaded, 0.01 µF, ± 1%, 40 V, 63 V
圖片僅供舉例說明。 請參閱產品描述。
1,161 有存貨
需要更多？
1161 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$75.480 |
| 100+ | NT$68.140 |
| 1000+ | NT$60.460 |
| 3000+ | NT$54.740 |
價格Each
最少: 1
多項: 1
NT$75.48
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商產品編號FSCEX 10000PF 1%63V
訂購代碼9520414
Product RangeFSC/EX Series
技術資料表
Dielectric TypeFilm / Foil PS
Capacitor Case / PackageAxial Leaded
Capacitance0.01µF
Capacitance Tolerance± 1%
Voltage(AC)40V
Voltage(DC)63V
Capacitor MountingThrough Hole
Capacitor TerminalsPC Pin
Humidity Rating-
Lead Spacing-
Product Length17mm
Product Width-
Product Height-
Product RangeFSC/EX Series
Operating Temperature Min-40°C
Operating Temperature Max85°C
Qualification-
SVHCNo SVHC (25-Jun-2025)
產品總覽
The LCR Components FSC/EX series are axial leaded polystyrene capacitors. These capacitors are constructed with an extended tin foil and polystyrene as a dielectric material. The FSC/EX series polystyrene capacitors are recommended for use in IF transformers, tuned circuits, pulse networks, laboratory standards, timing circuits, analogue and digital computing circuits.
- Capacitance value ranges from 47pF to 100nF
- ±1%,±2%, ±5% ±10% tolerances
- Available in 63V, 160V, 250V, 630VDC voltages
- Operating temperature range -40°C to +85°C
應用
Industrial, Consumer Electronics, Portable Devices, Power Management
技術規格
Dielectric Type
Film / Foil PS
Capacitance
0.01µF
Voltage(AC)
40V
Capacitor Mounting
Through Hole
Humidity Rating
-
Product Length
17mm
Product Height
-
Operating Temperature Min
-40°C
Qualification
-
Capacitor Case / Package
Axial Leaded
Capacitance Tolerance
± 1%
Voltage(DC)
63V
Capacitor Terminals
PC Pin
Lead Spacing
-
Product Width
-
Product Range
FSC/EX Series
Operating Temperature Max
85°C
SVHC
No SVHC (25-Jun-2025)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Great Britain
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Great Britain
承擔產品生產最後程序之國家
關稅編號：85322500
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.0013
