EEUFK1C222L

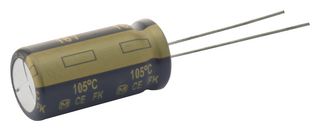

Electrolytic Capacitor, 2200 µF, 16 V, ± 20%, Radial Leaded, 4000 hours @ 105°C, Polar
圖片僅供舉例說明。 請參閱產品描述。
1,482 有存貨
需要更多？
1482 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$53.480 |
| 5+ | NT$40.570 |
| 10+ | NT$27.650 |
| 20+ | NT$26.490 |
| 40+ | NT$25.330 |
| 100+ | NT$24.160 |
價格Each
最少: 1
多項: 1
NT$53.48
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商PANASONIC
製造商產品編號EEUFK1C222L
訂購代碼1744922
Product RangeFK Series
技術資料表
Capacitance2200µF
Voltage(DC)16V
Capacitance Tolerance± 20%
Capacitor TerminalsRadial Leaded
Lifetime @ Temperature4000 hours @ 105°C
PolarityPolar
Capacitor Case / PackageRadial Leaded
Lead Spacing5mm
Product Diameter10mm
Product Length-
Product Width-
Product Height30mm
Product RangeFK Series
ESR-
Ripple Current2.14A
Operating Temperature Min-55°C
Operating Temperature Max105°C
QualificationAEC-Q200
SVHCNo SVHC (25-Jun-2025)
產品總覽
The EEUFK1C222L is an aluminium Electrolytic Capacitor with radial leaded and it features high reliability, long life, low impedance and high ripple current. The FK-A series electrolytic capacitor is suitable for high reliability application such as an industrial instrument.
- PET sleeve sheathing (metal case) appearance
- 2140mA RMS at 100kHz/+105°C Ripple current
- 0.025Ω at 100kHz/+20°C Impedance
應用
Industrial
技術規格
Capacitance
2200µF
Capacitance Tolerance
± 20%
Lifetime @ Temperature
4000 hours @ 105°C
Capacitor Case / Package
Radial Leaded
Product Diameter
10mm
Product Width
-
Product Range
FK Series
Ripple Current
2.14A
Operating Temperature Max
105°C
SVHC
No SVHC (25-Jun-2025)
Voltage(DC)
16V
Capacitor Terminals
Radial Leaded
Polarity
Polar
Lead Spacing
5mm
Product Length
-
Product Height
30mm
ESR
-
Operating Temperature Min
-55°C
Qualification
AEC-Q200
EEUFK1C222L 的替代選擇
找到 4 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
關稅編號：85322200
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.00381
