EEUFK1C681L

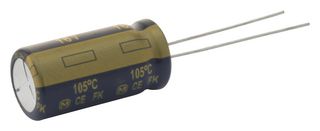

Electrolytic Capacitor, 680 µF, 16 V, ± 20%, Radial Leaded, 3000 hours @ 105°C, Polar
圖片僅供舉例說明。 請參閱產品描述。
170 有存貨
1,800 即日起您可預購補貨
170 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$25.840 |
| 5+ | NT$17.950 |
| 10+ | NT$14.190 |
| 25+ | NT$13.140 |
| 50+ | NT$12.190 |
| 200+ | NT$11.220 |
價格Each
最少: 1
多項: 1
NT$25.84
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商PANASONIC
製造商產品編號EEUFK1C681L
訂購代碼1744915
Product RangeFK Series
技術資料表
Capacitance680µF
Voltage(DC)16V
Capacitance Tolerance± 20%
Capacitor TerminalsRadial Leaded
Lifetime @ Temperature3000 hours @ 105°C
PolarityPolar
Capacitor Case / PackageRadial Leaded
Lead Spacing5mm
Product Diameter8mm
Product Length-
Product Width-
Product Height15mm
Product RangeFK Series
ESR-
Ripple Current860mA
Operating Temperature Min-55°C
Operating Temperature Max105°C
QualificationAEC-Q200
SVHCNo SVHC (25-Jun-2025)
產品總覽
FK-A series radial leaded aluminium electrolytic capacitors offers an endurance 3000h to 5000h at 105°C.
- Low impedance (10 % to 30 % less than FC series)
- AEC-Q200 compliant
- Miniaturization (30 % to 40 % less than FC series)
技術規格
Capacitance
680µF
Capacitance Tolerance
± 20%
Lifetime @ Temperature
3000 hours @ 105°C
Capacitor Case / Package
Radial Leaded
Product Diameter
8mm
Product Width
-
Product Range
FK Series
Ripple Current
860mA
Operating Temperature Max
105°C
SVHC
No SVHC (25-Jun-2025)
Voltage(DC)
16V
Capacitor Terminals
Radial Leaded
Polarity
Polar
Lead Spacing
5mm
Product Length
-
Product Height
15mm
ESR
-
Operating Temperature Min
-55°C
Qualification
AEC-Q200
EEUFK1C681L 的替代選擇
找到 1 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
關稅編號：85322200
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.001374
