RTM3K-54PK

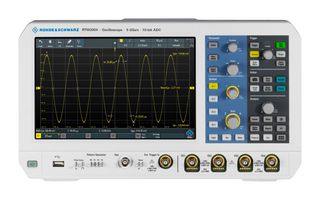

Mixed Signal Oscilloscope, 4+16 Channel, 500 MHz, 2.5 GSPS, 700 ps, 40 Mpts, WXGA Touch Screen LCD

ROHDE & SCHWARZ RTM3K-54PK
ROHDE & SCHWARZ RTM3K-54PK
ROHDE & SCHWARZ RTM3K-54PK
ROHDE & SCHWARZ RTM3K-54PK
ROHDE & SCHWARZ RTM3K-54PK
視訊
×
×

圖片僅供舉例說明。 請參閱產品描述。

製造商產品編號:
RTM3K-54PK
訂購代碼:
3549286
產品範圍
RTM3000
技術資料表:
RTM3K-54PK   Datasheet
查看所有技術文件

產品訊息

想要查看類似產品?只要選擇以下所需屬性並按下按鈕即可 ×


:
RTM3000

:
4+16 Channel

:
500MHz

:
2.5GSPS

:
40 Mpts

:
700ps

:
WXGA Touch Screen LCD Colour

:
RTM3004 OSC, RTM-B245 500MHz BW, RTM-B1 MSO, RTM-PK1 Bundle:RTM-K1/K2/K3/K5/K6/K7/K15/K31/K36/K37/B6

:
3 Years

:
-

尋找類似產品 選擇並修改上方屬性,尋找類似的產品。

技術文件 (12)

CAD 下載

×

條款與條件

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

接受 取消

產品總覽

The RTM3K-54 from Rohde & Schwarz is a RTM3000 series, 4 channel digital oscilloscope with RTM-B245 500MHz bandwidth upgrade. It features 10.1" high resolution (1280 x 800 pixels) capacitive touchscreen TFT display with gesture support, 10bit ADC and 40Msample/channel standard, 80Msample interleaved memory depth. The oscilloscope includes a wide range of upgrade options.
  • 400Msample segmented acquisition memory (optional)
  • Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved
  • Waveform update rate is 64000waveforms/s
  • Minimum input sensitivity is 500µV/div
  • 10 second boot time
  • I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio (I²S), ARINC, MIL protocols (optional)
  • Arbitrary waveform and 4bit pattern generator optional
  • Standard digital voltmeter and trigger counter
  • LAN, USB host/device, fast display over Ethernet connectivity
  • Oscilloscope size is 390mm x 220mm x 152mm (W x H x D)

內容

Oscilloscope, 500MHz passive probe per channel, Power cord, RTM-B245 500MHz BW, RTM-B1 MSO, RTM-PK1 Bundle:RTM-K1/K2/K3/K5/K6/K7/K15/K31/K36/K37/B6.

暢銷品

開放補貨預購

送貨日期自 2021/12/25

有貨時通知我

NT$303,187.86

不提供定價。 請聯絡客戶服務

價格
1 每套
多項: 1 最少: 1
數量 價格 您的價格


1+ NT$303,187.86
