MKP1845410204

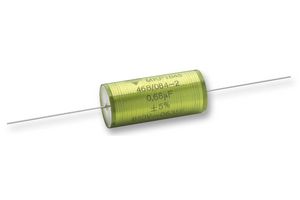

Power Film Capacitor, Metallized PP, Axial Leaded, 0.1 µF, ± 5%, Snubber, Through Hole
圖片僅供舉例說明。 請參閱產品描述。
275 有存貨
需要更多？
275 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$225.760 |
| 10+ | NT$186.700 |
| 25+ | NT$185.140 |
| 50+ | NT$183.580 |
| 100+ | NT$182.020 |
| 250+ | NT$180.460 |
價格Each
最少: 1
多項: 1
NT$225.76
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商VISHAY
製造商產品編號MKP1845410204
訂購代碼1413943
Product RangeMKP1845 Series
技術資料表
Dielectric TypeMetallized PP
Capacitor Case / PackageAxial Leaded
Capacitance0.1µF
Capacitance Tolerance± 5%
Typical ApplicationsSnubber
Capacitor MountingThrough Hole
Voltage(AC)-
Voltage(DC)2kV
Humidity Rating-
Capacitor TerminalsAxial Leaded
Lead Spacing-
dv/dt Rating6.2kV/µs
Peak Current-
RMS Current (Irms)-
ESR-
Product Diameter25mm
Product Length-
Product Width-
Product Height-
Ripple Current-
Output (kvar)-
Product RangeMKP1845 Series
Operating Temperature Min-55°C
Operating Temperature Max100°C
Qualification-
SVHCNo SVHC (21-Jan-2025)
產品總覽
The MKP1845 series Film Capacitor with polypropylene film dielectric and vacuum deposited aluminium electrodes. It has insulated metal-foil-wrapped and flame-retardant epoxy resin sealed. The extended double-sided metallised polyester film capacitor is suitable for high voltage, high current and high pulse operations, deflection circuits in TV sets (S-correction and fly-back tuning). Protection circuits in SMPS's. Snubber and electronic ballast circuits. Input and output filtering in SPS designs, storage, timing and integrating circuits.
- Tinned wire leads
- 1000pF to 4.7µF Capacitance range
- ±20% (M), ±10% (K) and ±5% (J) Capacitance tolerances available
應用
Power Management, Clock & Timing, Industrial
技術規格
Dielectric Type
Metallized PP
Capacitance
0.1µF
Typical Applications
Snubber
Voltage(AC)
-
Humidity Rating
-
Lead Spacing
-
Peak Current
-
ESR
-
Product Length
-
Product Height
-
Output (kvar)
-
Operating Temperature Min
-55°C
Qualification
-
Capacitor Case / Package
Axial Leaded
Capacitance Tolerance
± 5%
Capacitor Mounting
Through Hole
Voltage(DC)
2kV
Capacitor Terminals
Axial Leaded
dv/dt Rating
6.2kV/µs
RMS Current (Irms)
-
Product Diameter
25mm
Product Width
-
Ripple Current
-
Product Range
MKP1845 Series
Operating Temperature Max
100°C
SVHC
No SVHC (21-Jan-2025)
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Portugal
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Portugal
承擔產品生產最後程序之國家
關稅編號：85322500
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.0178
