505278-1670

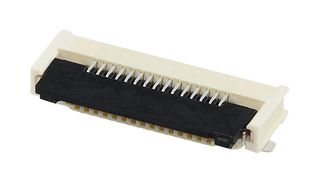

FFC / FPC Board Connector, 0.5 mm, 16 Contacts, Easy-On 505278 Series, Solder, Bottom, 1 Row
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No505278-1670Copy
Manufacturer Standard Lead Time11 weeks
Order Code4696010
Product RangeEasy-On 505278 Series
Also Known As5052781670, 505278-1670
Your Part Number
1,210 In Stock
Need more?
1,210 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | NT$49.940 |
| 100+ | NT$48.660 |
| 500+ | NT$48.340 |
| 1000+ | NT$46.640 |
| 2000+ | NT$44.930 |
| 3000+ | NT$43.220 |
Price for:Each (Supplied on Cut Tape)
Minimum: 10
Multiple: 10
NT$499.40
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No505278-1670Copy
Manufacturer Standard Lead Time11 weeks
Order Code4696010
Product RangeEasy-On 505278 Series
Also Known As5052781670, 505278-1670
Pitch Spacing0.5mm
No. of Contacts16Contacts
Product RangeEasy-On 505278 Series
Contact Termination TypeSolder
Contact PositionBottom
No. of Rows1 Row
Contact Plating0
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.3mm
Connector MountingSurface Mount
Connector OrientationRight Angle
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Pitch Spacing
0.5mm
Gender
Receptacle
Contact Termination Type
Solder
No. of Rows
1 Row
Contact Material
Phosphor Bronze
Connector Mounting
Surface Mount
SVHC
No SVHC (04-Feb-2026)
No. of Contacts
16Contacts
Product Range
Easy-On 505278 Series
Contact Position
Bottom
Contact Plating
0
FFC / FPC Thickness
0.3mm
Connector Orientation
Right Angle
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000145
