92865300.HMT1

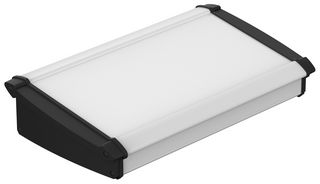

Metal Enclosure, Instrument, Aluminium Alloy, 68.2 mm, 181.2 mm, 300 mm, IP40, IP54
圖片僅供舉例說明。 請參閱產品描述。
可供訂購
製造商標準交貨時間：6 週
有貨時通知我
| 數量 | 價格 |
|---|---|
| 1+ | NT$2,522.100 |
| 5+ | NT$2,301.000 |
| 10+ | NT$2,155.100 |
價格Each
最少: 1
多項: 1
NT$2,522.10
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商BOPLA
製造商產品編號92865300.HMT1复制
製造商標準前置時間6 週
訂購代碼4569718
Product RangeALU-TOPLINE Series
Enclosure TypeInstrument
Enclosure MaterialAluminium Alloy
External Height - Metric68.2mm
External Width - Metric181.2mm
External Depth - Metric300mm
IP RatingIP40, IP54
Body ColourNatural
NEMA RatingNEMA 3
External Height - Imperial2.69"
External Width - Imperial7.13"
External Depth - Imperial11.81"
Product RangeALU-TOPLINE Series
SVHCNo SVHC (27-Jun-2024)
ConfigurableYes
產品總覽
92865300.HMT1 is an ATPH 1865-0300 ALU-TOPLINE_SET horizontally divided profile enclosure for use as a desktop or wall-mounted enclosure.
- Alu-Topline has a lowered surface for mounting keyboards or operating elements such as hand switches
- Profile has various slots as well as alternatively usable screw channels for mounting PCBs
- Additional smooth surfaces for mounting interfaces such as USB or D-Sub connectors
- Dimensions are matched to typical touch/display sizes. ATPH 18.. = 7.0"
- Invisible wall mounting as accessory
- Temperature range from -25°C to 70°C
- Made of aluminium / ABS material
- Aluminium/black colour
- IP54 and NEMA 3 rated
- Dimension is 68.2mm x 300mm x 181.2mm (H x W x D)
內容
2-piece enclosure profile, 2 x covers, 8 x screws, 8 x screw covers.
技術規格
Enclosure Type
Instrument
External Height - Metric
68.2mm
External Depth - Metric
300mm
Body Colour
Natural
External Height - Imperial
2.69"
External Depth - Imperial
11.81"
SVHC
No SVHC (27-Jun-2024)
Enclosure Material
Aluminium Alloy
External Width - Metric
181.2mm
IP Rating
IP40, IP54
NEMA Rating
NEMA 3
External Width - Imperial
7.13"
Product Range
ALU-TOPLINE Series
Configurable
Yes
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Hungary
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Hungary
承擔產品生產最後程序之國家
關稅編號：76129080
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.9
