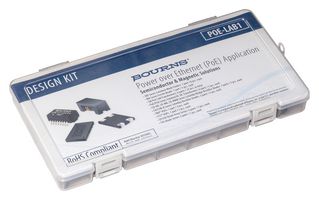

POE-LAB1
Design Kit, Ethernet Transformers, Isolated DC-DC Conversion Transformers, Common Mode Choke
| Manufacturer | BOURNS |
|---|---|
| Manufacturer Part No | POE-LAB1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4419932 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | NT$2,012.150 |
| 3+ | NT$1,971.910 |
| 5+ | NT$1,932.450 |
Product Information
| Manufacturer | BOURNS |
|---|---|
| Manufacturer Part No | POE-LAB1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4419932 |
| Technical Datasheet | |
| Kit Contents | Ethernet Transformers, Isolated DC-DC Conversion Transformers, Common Mode Choke, Ferrite Beads |
| Product Range | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
POE-LAB1 is a design kit. It helps to streamline both the designing of power/data delivery and protection in power over ethernet (PoE) applications. This kit includes advanced components from Bourns’ broad portfolio of Semiconductor and Magnetic products that are particularly suited to support high-speed ethernet lines (up to 10 GbE) with PoE++ (Type 4) capabilities. It provides a synergistic approach that gives developers a useful resource with a wide range of options for their PoE designs that can satisfy a variety of power/data delivery and protection requirements. This design kit allows designers to evaluate how multiple product combinations can meet various PoE application specifications, all using a convenient single design kit.
- Design kit comes with 32 different products
Contents
Ethernet transformers, Isolated DC-DC conversion transformers, Common mode choke, Ferrite beads, Single and bridge Schottky rectifier diodes, Bourns® TBU® and TCS™ high-speed protectors, Diode arrays, and TVS diodes.
Technical Specifications
| Kit Contents | Ethernet Transformers, Isolated DC-DC Conversion Transformers, Common Mode Choke, Ferrite Beads |
|---|---|
| SVHC | No SVHC (21-Jan-2025) |
| Product Range | - |
|---|
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85043180 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001 |
