1146B

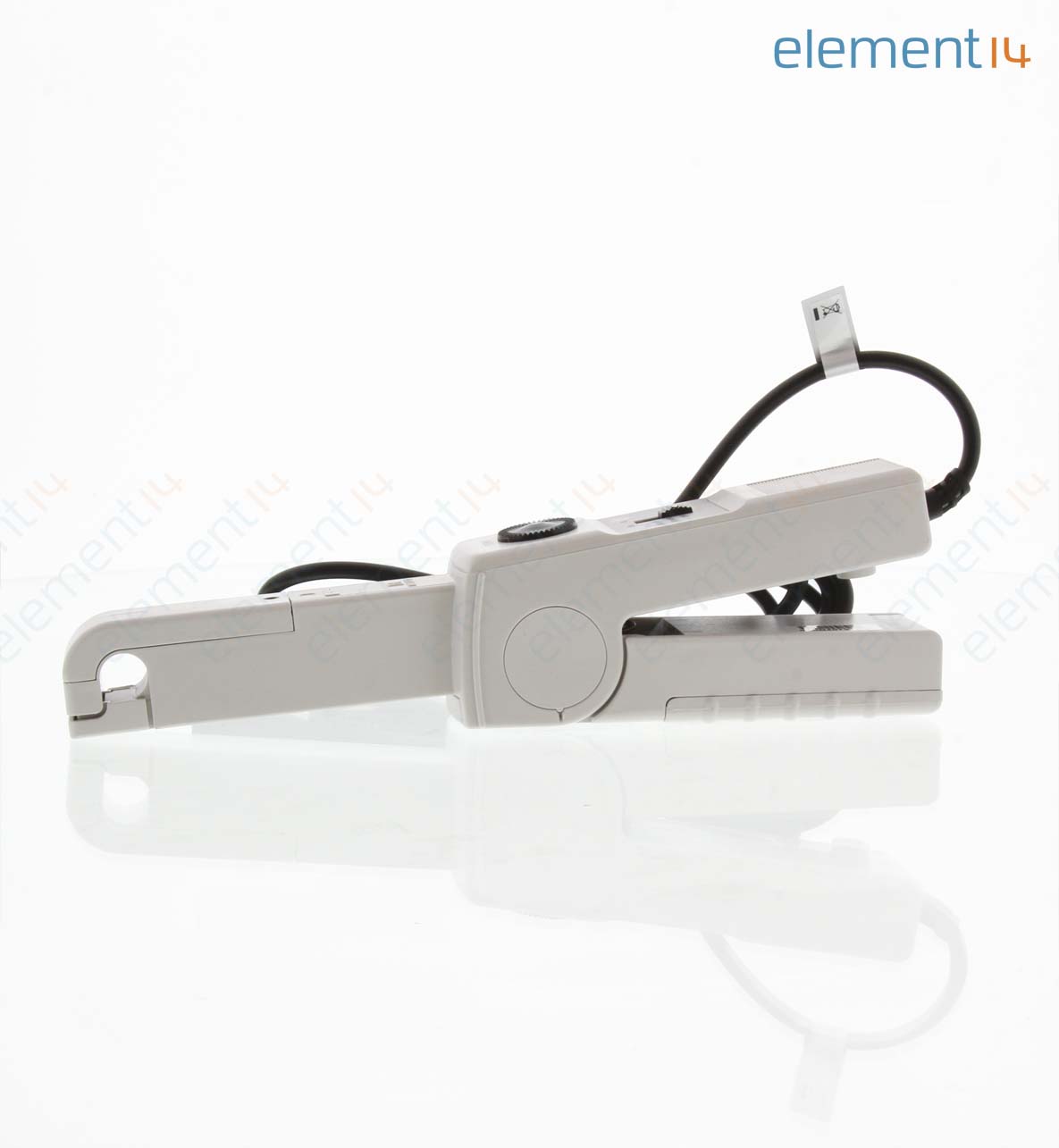

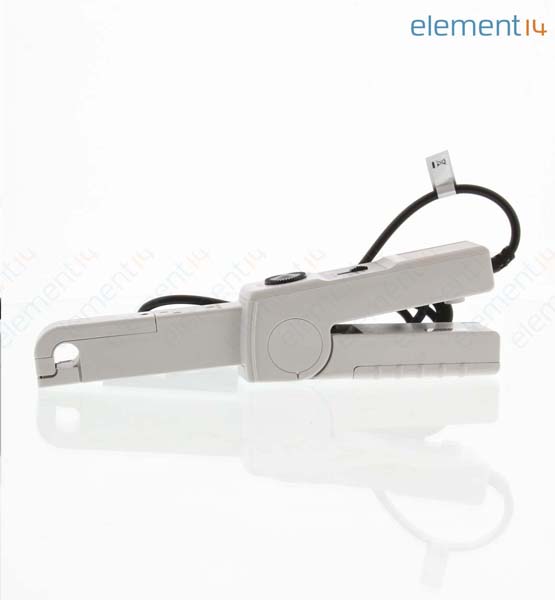

Current Probe, BNC Plug, Current Clamp, 100 A, 100 mA
- Manufacturer:
- KEYSIGHT TECHNOLOGIES KEYSIGHT TECHNOLOGIES
- Manufacturer Part No:
- 1146B
- Order Code:
- 2409627
- Technical Datasheet:
- 1146B Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- BNC Plug
- :
- Current Clamp
- :
- 100A
- :
- 100mA
- :
- Keysight 2000 X, 3000 X, 4000 X, 5000, 6000, 7000 Series Oscilloscopes
- :
- -
Technical Documents (3)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
The 1146B is a 100A 100kHz Current Probe. It provides accurate display and measurement of currents from 100mA to 100A rms, DC to 100kHz, without breaking the circuit. It uses hall-effect sensor technology to measure AC and DC signals. Ideal for capturing transient current signals such as those found in motor controllers, switching power supplies, inverters and current amplifiers driving inductive loads.
- Frequency range: DC to 100 kHz (-3dB with current de-rating)
- Current range: 100 mV/A: 100 mA to 10 A peak, 10 mV/A: 1 to 100 A peak
- Working voltage: 600 V max
- Battery: 9 V alkaline
Applications
Industrial, Test & Measurement, Motor Drive & Control
