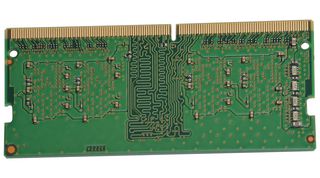

MTA4ATF51264HZ-3G2R1
RAM Memory Module, 4 GB, 1 MHz, PC4-3200, 260-Pin DDR4 SDRAM SO-DIMM, Notebook SODIMM

| Manufacturer | MICRON |
|---|---|
| Manufacturer Part No | MTA4ATF51264HZ-3G2R1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 3861323 |
| Your Part Number | |
| Technical Datasheet |
200 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | NT$10,325.970 |
Product Information
| Manufacturer | MICRON |
|---|---|
| Manufacturer Part No | MTA4ATF51264HZ-3G2R1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 3861323 |
| Technical Datasheet | |
| Memory Density | 4GB |
| Memory Speed | 1MHz |
| Module Memory | PC4-3200 |
| Module Form Factor | 260-Pin DDR4 SDRAM SO-DIMM |
| Memory Application | Notebook SODIMM |
| Memory Configuration | 512M x 64bit |
| Supply Voltage Min | 1.14V |
| Supply Voltage Max | 1.26V |
| Supply Voltage Nom | 1.2V |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 95°C |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2015) |
Product Overview
MTA4ATF51264HZ-3G2R1 is a high-speed DDR4 SDRAM module that uses a DDR4 SDRAM device with two or four internal memory bank groups. DDR4 SDRAM module utilize 4- and 8-bit-wide DDR4 SDRAM devices have four internal bank groups consisting of four memory banks each, providing a total of 16 banks. 16-bit-wide DDR4 SDRAM device has two internal bank groups consisting of four memory banks each, providing a total of eight banks. DDR4 SDRAM module benefits from the DDR4 SDRAM's use of an 8n-prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O pins. A single READ or WRITE operation for the DDR4 SDRAM effectively consists of a single 8n-bit-wide, four-clock data transfer at the internal DRAM core and eight corresponding n-bit-wide, one-half-clock-cycle data transfers at the I/O pins. DDR4 module uses two sets of differential signals: DQS_t and DQS_c to capture data and CK_t and CK_c to capture commands, addresses, and control signals.
- 4GB module density, 512 Meg x 64 configuration, 25.6GB/s module bandwidth
- 0.62ns/3200MT/s memory clock/data rate, 22-22-22 clock cycles (CL-tRCD-tRP)
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh, data bus inversion for data bus, terminated control command/addr bus
- On-die VREFDQ generation and calibration, single-rank, fly-by topology
- On-board I²C serial presence-detect (SPD) EEPROM, 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop of 4 and burst length of 8 via the mode register set (MRS), gold edge contacts
- 260-pin DIMM package
- Commercial operating temperature range from 0°C ≤ TOPER ≤ 95°C
Technical Specifications
| Memory Density | 4GB |
|---|---|
| Module Memory | PC4-3200 |
| Memory Application | Notebook SODIMM |
| Supply Voltage Min | 1.14V |
| Supply Voltage Nom | 1.2V |
| Operating Temperature Max | 95°C |
| SVHC | No SVHC (17-Dec-2015) |
| Memory Speed | 1MHz |
|---|---|
| Module Form Factor | 260-Pin DDR4 SDRAM SO-DIMM |
| Memory Configuration | 512M x 64bit |
| Supply Voltage Max | 1.26V |
| Operating Temperature Min | 0°C |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2015) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004536 |
