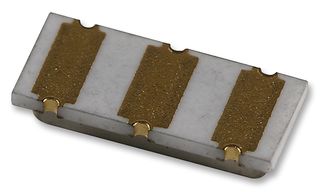

CSTCR4M00G53-R0
Resonator, Ceramic, CSTCR, 4 MHz, ± 0.5%, ± 0.2%, 60 ohm
16,023 In Stock
Need more?
16,023 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price (excl GST): | Total |
|---|---|---|---|
| Cut Tape | 5 | NT$11.800 | NT$59.00 |
| Total Price | NT$59.00 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 5+ | NT$11.800 |
| 10+ | NT$10.410 |
| 100+ | NT$9.080 |
| 500+ | NT$8.250 |
| 1000+ | NT$7.920 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MURATA |
|---|---|
| Manufacturer Part No | CSTCR4M00G53-R0Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | Re-Reel1170428RL Cut Tape1170428 |
| Product Range | CSTCR |
| Technical Datasheet | |
| Frequency | 4MHz |
| Product Range | CSTCR |
| Resonant Frequency | 4MHz |
| No. of Pins | 3 Pin |
| Frequency Tolerance | ± 0.5% |
| Frequency Stability | ± 0.2% |
| Resonant Impedance | 60ohm |
| Resonator Case / Package | SMD |
| No. of Pins | 3Pins |
| Resonator Dimensions | 2 mm x 4.5 mm x 1.15 mm |
| Oscillator Mounting | - |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 80°C |
| SVHC | Lead titanium zirconium oxide (04-Feb-2026) |
Product Overview
The CSTCR4M00G53-R0 from Murata is a surface mount piezoelectric ceramic resonator.
- Nominal oscillating frequency of 4MHz
- Frequency tolerance of ±0.5%
- Frequency stability of ± 0.2%
- Resonant impedance of 60 ohm
- Rated working voltage 6VDC and 15Vp-p AC
- Operating temperature range from -20°C to 80°C
Applications
Industrial
Technical Specifications
| Frequency | 4MHz |
|---|---|
| Resonant Frequency | 4MHz |
| Frequency Tolerance | ± 0.5% |
| Resonant Impedance | 60ohm |
| No. of Pins | 3Pins |
| Oscillator Mounting | - |
| Operating Temperature Max | 80°C |
| Product Range | CSTCR |
|---|---|
| No. of Pins | 3 Pin |
| Frequency Stability | ± 0.2% |
| Resonator Case / Package | SMD |
| Resonator Dimensions | 2 mm x 4.5 mm x 1.15 mm |
| Operating Temperature Min | -20°C |
| SVHC | Lead titanium zirconium oxide (04-Feb-2026) |
Technical Docs (3)
Alternatives for CSTCR4M00G53-R0
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85437090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead titanium zirconium oxide (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000025 |
