B82145A1105J000

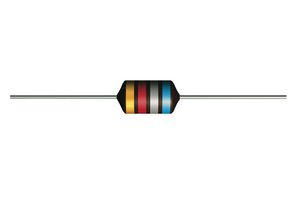

RF Choke, RF Choke, B82145A HLBC Series, 1 mH, 370 mA, 3.6 ohm, ± 5%, 1.3 MHz
圖片僅供舉例說明。 請參閱產品描述。
1,076 有存貨
需要更多？
1076 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$17.940 |
| 50+ | NT$12.890 |
| 100+ | NT$12.150 |
| 250+ | NT$11.250 |
| 500+ | NT$10.600 |
| 1250+ | NT$10.400 |
價格Each
最少: 1
多項: 1
NT$17.94
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商EPCOS
製造商產品編號B82145A1105J000
訂購代碼1644323
Product RangeB82145A HLBC Series
技術資料表
Product RangeB82145A HLBC Series
Inductance1mH
DC Current Rating370mA
DC Resistance Max3.6ohm
Inductance Tolerance± 5%
Self Resonant Frequency1.3MHz
SVHCLead (25-Jun-2025)
產品總覽
The B82145A1105J000 is an axial leaded High Frequency Inductor with large ferrite drum core. This RF choke features enamel copper wire with flame-retardant lacquer coating. This inductor's terminals are made of central axial leads, CuAg0.1 base and electroplated with nickel and pure tin terminations. Supports 1.3MHz resonance frequency and ±5% of inductance tolerance. It is suitable for wave soldering.
- High rated current at high inductance ratings
- Inductance indicated by colour bands to IEC 60062
- 55/125/56 (to IEC 60068-1) Climatic category
應用
RF Communications, Lighting
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技術規格
Product Range
B82145A HLBC Series
DC Current Rating
370mA
Inductance Tolerance
± 5%
SVHC
Lead (25-Jun-2025)
Inductance
1mH
DC Resistance Max
3.6ohm
Self Resonant Frequency
1.3MHz
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Hungary
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Hungary
承擔產品生產最後程序之國家
關稅編號：85045000
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：Y-Ex
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:Lead (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.001252
