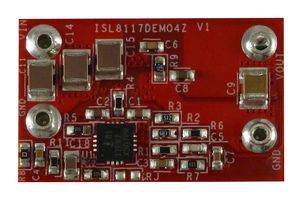

ISL8117DEMO4Z

The ISL8117DEMO4Z from is an ISL8117 demonstration board. The ISL8117 is a 60V high voltage synchronous buck controller that offers external soft-start, independent enable functions and integrates UV/OV/OC/OT protection. Its current mode control architecture and internal compensation network keep peripheral component count minimal. Programmable switching frequency ranging from 100KHz to 2MHz helps to optimize inductor size while the strong gate driver delivers up to 30A for the buck output.

• Small, compact design
• Wide input range from 6V to 60V
• High light-load efficiency in pulse skipping DEM operation
• Programmable soft-start
• Optional DEM/CCM operation
• Supports pre-bias output with SR soft-start
• External frequency synchronous
• PGOOD indicator
• OCP, OVP, OTP and UVP protection
