產品訊息
製造商MICROCHIP
製造商產品編號ADM00864
訂購代碼2947759
Silicon ManufacturerMicrochip
Silicon Core NumberMIC2800
Kit Application TypePower Management - Voltage Regulator
Application Sub TypeDC/DC Buck Converter
Kit ContentsEval Board PIC2800, Information Sheet
Product Range-
Automotive Qualification Standard-
SVHCNo SVHC (25-Jun-2025)
產品總覽

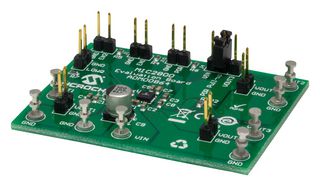

MIC2800 3 output PMIC evaluation board. It is used to demonstrate the capabilities of MIC2800 PMIC which can deliver 600mA from a DC/DC buck converter and 300mA from each of the two stand-alone LDOs.
- 2.7V to 5V input voltage range (LDO2 regulates down to 3.6V)
- 2MHz Dc/DC converter and two stand-alone LDOs
- 600mA DC/DC output current in PWM mode
- Low power mode available
- Greater than 90% efficiency
- 300mA each LDO output current
內容
MIC2800 DC/DC with dual LDO PMIC evaluation board, Information sheet.
技術規格
Silicon Manufacturer
Microchip
Kit Application Type
Power Management - Voltage Regulator
Kit Contents
Eval Board PIC2800, Information Sheet
Automotive Qualification Standard
-
Silicon Core Number
MIC2800
Application Sub Type
DC/DC Buck Converter
Product Range
-
SVHC
No SVHC (25-Jun-2025)
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.097976
