75586-0010

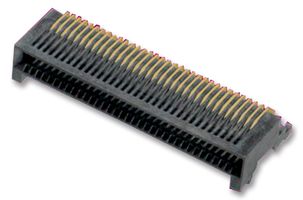

I/O Connector, 38 Contacts, Receptacle, Mini SAS, Surface Mount, iPass 75586, PCB Mount
圖片僅供舉例說明。 請參閱產品描述。
製造商MOLEX
製造商產品編號75586-0010
訂購代碼2426392
Product RangeiPass 75586
其他名稱GTIN UPC EAN: 822348852499
您的零件号
技術資料表
產品訊息
製造商MOLEX
製造商產品編號75586-0010
訂購代碼2426392
Product RangeiPass 75586
其他名稱GTIN UPC EAN: 822348852499
技術資料表
No. of Contacts38Contacts
GenderReceptacle(檢視相關連接器)
Connector TypeMini SAS
Contact Termination TypeSurface Mount
Product RangeiPass 75586
Connector MountingPCB Mount
Contact PlatingGold Plated Contacts
Contact MaterialCopper Alloy
SVHCNo SVHC (25-Jun-2025)
產品總覽
The 75586-0010 is a 0.8mm pitch right-angle iPass™ Mini Multi-Lane PCI Express I/O receptacle for wire-to-board application. It features 38-circuit, 1-port, 2-row for external application and supports QSFP14/FDR. It is made of high performance alloy and high temperature thermoplastic resin with gold plating on mating area and tin plating on termination. It mates with 74547 iPass™ cable assembly.
- Maximum current per contact is 0.5A
- Operating temperature range from -40°C to 80°C
- Maximum durability of 50 mating cycles
- Surface mount style termination interface
應用
Communications & Networking
技術規格
No. of Contacts
38Contacts
Connector Type
Mini SAS
Product Range
iPass 75586
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Gender
Receptacle
Contact Termination Type
Surface Mount
Connector Mounting
PCB Mount
Contact Material
Copper Alloy
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：85366930
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.002
