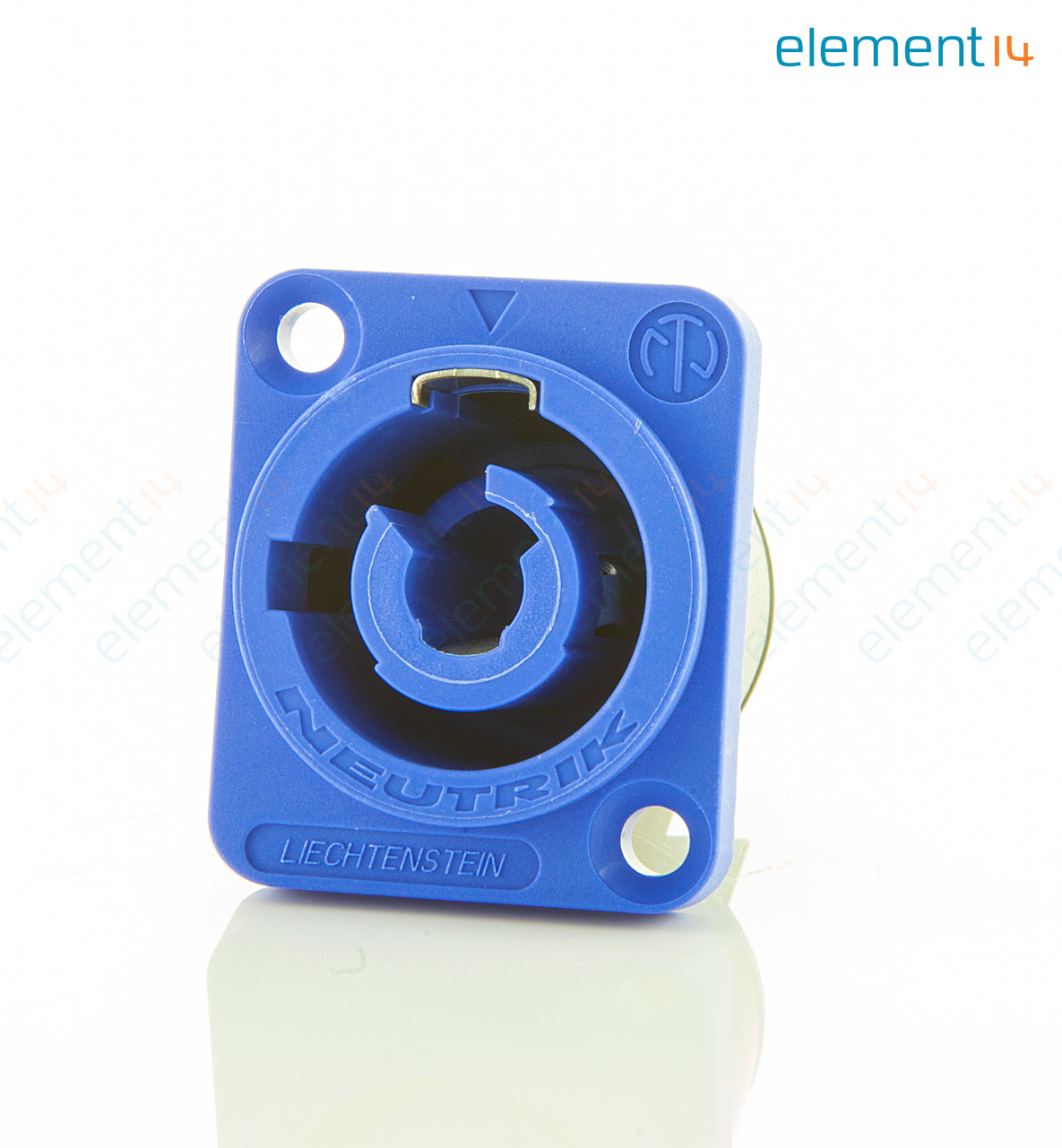

NAC3MPA-1

The NAC3MPA-1 from Neutrik is a power-in powerCON male chassis connector with 3/16'' flat tab terminals. The powerCON is a lockable 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed for a safe power connection.

• Locking 20A/250VAC appliance coupler
• Power-in (blue colour) version with different keying to avoid the possibility of inter-mating
• Fast and easy twist lock latching system
• Extremely robust & reliable, ergonomic design
• User friendly latch design for easy handling
• UL ECBT2.E135070, cUL ECBT8.E135070 recognized and VDE certified
• Bronze with silver contacts and polyamide shell
• Flammability rating meets UL94V-0
• Temperature range from -30°C to +80°C
• Greater than 1000 mating cycles

應用

Industrial, Power Management
