YSTBS3A3E10
Development Board, Synergy S3A3 MCU Family, Target Board, Full Pin Access, On Board Debugger
可供訂購
製造商標準交貨時間：20 週
有貨時通知我
| 數量 | 價格 |
|---|---|
| 1+ | NT$1,374.120 |
價格Each
最少: 1
多項: 1
NT$1,374.12
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品總覽

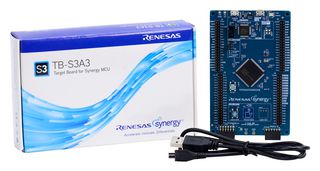

Development kit for the Renesas Synergy™ S3A3 Microcontroller in an LQFP144 package. TB-S3A3 is designed to help developers get started with initial firmware development and evaluation of the S3A3 MCU group.
- 48MHz Arm® Cortex® M4 core with FPU
- 96KB SRAM, 512KB code flash memory and 8KB data flash memory
- USB connector for the main MCU
- Segger J-Link® on-board interface for debugging and programming of the S3A3 MCU
- 2 PMOD connectors allowing use of PMOD compliant peripheral plug-in modules for rapid prototyping
- Main MCU oscillator crystals providing precision 12.000MHz and 32,768Hz reference clocks
- Additional low precision clocks are available internal to the main MCU
- MCU reset push button switch, MCU boot configuration jumper
- External 5V I/P through the Debug USB connector supplies on-board power regulator to power target
- A red User LED, controlled by the Main MCU firmware
內容
TB-S3A3 board, One USB type-A to micro-B cable.
技術規格
Silicon Manufacturer
Renesas
Silicon Family Name
Synergy
Core Sub-Architecture
Cortex-M4
Kit Contents
Target Board S3A3, USB Type A to Micro-B Cable
SVHC
No SVHC (25-Jun-2025)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
S3A3
Product Range
-
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:5A992.c
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.1
