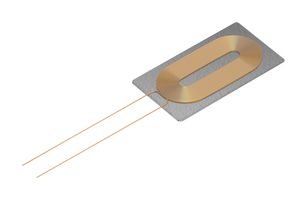

WR221230-36M8-G
Charging Coil, Receiver, WR Series, 27.9 µH, ± 5%, 1.21 ohm, 1 Coil, 2 Layers
圖片僅供舉例說明。 請參閱產品描述。
无库存
產品訊息
製造商TDK
製造商產品編號WR221230-36M8-G
訂購代碼2790527
Product RangeWR Series
技術資料表
Product RangeWR Series
Inductance27.9µH
Inductance Tolerance± 5%
DC Resistance Max1.21ohm
No. of Coils1 Coil
No. of Layers2 Layers
Saturation Current (Isat)-
Self Resonant Frequency-
Quality Factor-
AC Current Rating-
Product Length22mm
Product Width12mm
Product Height0.87mm
Inductor MountingBoard Mount
Operating Temperature Min-30°C
Operating Temperature Max70°C
技術規格
Product Range
WR Series
Inductance Tolerance
± 5%
No. of Coils
1 Coil
Saturation Current (Isat)
-
Quality Factor
-
Product Length
22mm
Product Height
0.87mm
Operating Temperature Min
-30°C
Inductance
27.9µH
DC Resistance Max
1.21ohm
No. of Layers
2 Layers
Self Resonant Frequency
-
AC Current Rating
-
Product Width
12mm
Inductor Mounting
Board Mount
Operating Temperature Max
70°C
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Japan
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Japan
承擔產品生產最後程序之國家
關稅編號：85045000
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
下載產品合規憑證
產品合規憑證
重量 (公斤)：.00065
