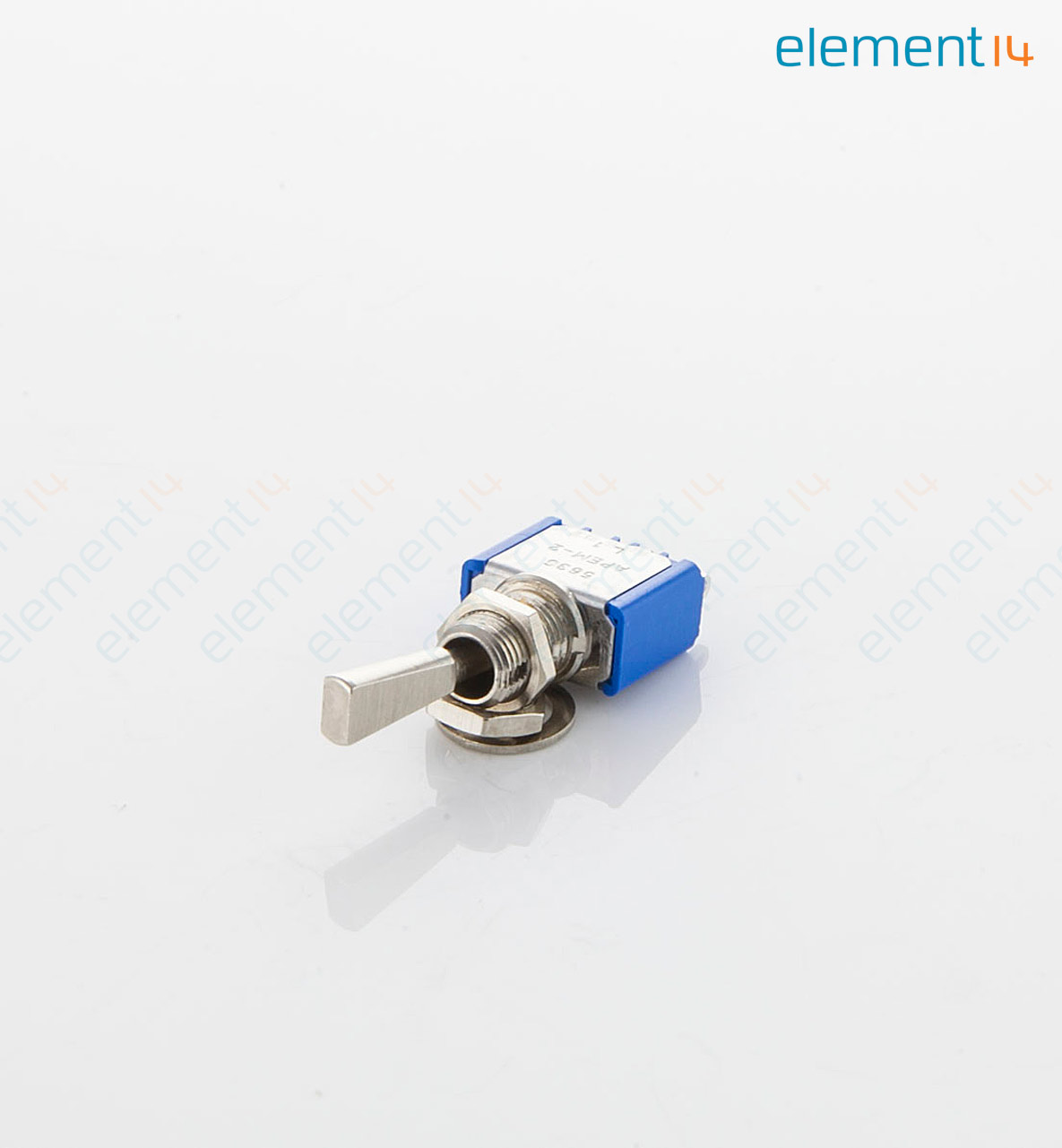

5636A-9

The 5000 series from Apem are miniature toggle switches. Available in 1, 2, 3 and 4 pole configurations. These switches are available in threaded bushing versions for panel mounting and plain bushing for PCB.

• 17 actuators including toggles, paddle levers and locking levers in different lengths
• 5 contact materials from dry circuit to 6A at 125VAC and high inrush upto 120A at 2ms
• 8 functions including maintained and momentary versions
• 12 terminal types including 9 for PC board mounting, quick connect and wire wrap
• 6 bushing styles from 6 (.236) plain to 11,9 (15/32) threaded
• 3 types of finish including military black
• VDE, UL, CSA and CECC approved
• 4 types of sealing for terminal or front panel requirements
• Solder lug and PC terminals, gold plated or silver contacts
• Threaded bushing versions for panel mounting and plain bushing versions for PCB

應用

Industrial, Power Management, Automation & Process Control
