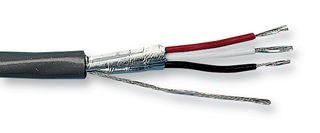

9533
Multicore Cable, Computer, EIA RS-232, Per Metre, Screened, 3 Core, 24 AWG, 3.3 ft, 1 m
3,469 有存貨
305 即日起您可預購補貨
3469 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$177.250 |
價格1 Metre
最少: 1
多項: 1
NT$177.25
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商BELDEN
製造商產品編號9533
訂購代碼1218691
技術資料表
Cable ShieldingScreened
No. of Cores3Core
Wire Gauge24AWG
Conductor Area CSA-
Reel Length (Imperial)3.3ft
Reel Length (Metric)1m
Jacket ColourChrome
No. of Max Strands x Strand Size7 x 32AWG
Conductor MaterialTinned Copper
Jacket MaterialPVC
External Diameter4.11mm
Voltage Rating300V
Product Range-
SVHCNo SVHC (10-Jun-2022)
產品總覽
The 9533 from Belden is a multi conductor computer cable for EIA RS232 applications. This cable is UL recognized and CSA certified.
- CPR: Not Yet Qualified
- Three 24AWG stranded (7x32) tinned copper conductors
- Polyvinyl chloride (PVC) insulation
- Overall Beldfoil shielding (100% coverage)
- Polyvinyl chloride (PVC) outer jacket
- Operating temperature range from -30°C to 80°C
- Overall nominal diameter is 0.162inch
- Nominal conductor DC resistance (DCR) of 25ohm/1000ft at 20°C
- Maximum operating voltage of 300Vrms (according to UL)
- Maximum recommended current of 1.75A per conductor at 25°C
- Nominal conductor to conductor capacitance of 33pF/ft
應用
Industrial, Communications & Networking
技術規格
Cable Shielding
Screened
Wire Gauge
24AWG
Reel Length (Imperial)
3.3ft
Jacket Colour
Chrome
Conductor Material
Tinned Copper
External Diameter
4.11mm
Product Range
-
No. of Cores
3Core
Conductor Area CSA
-
Reel Length (Metric)
1m
No. of Max Strands x Strand Size
7 x 32AWG
Jacket Material
PVC
Voltage Rating
300V
SVHC
No SVHC (10-Jun-2022)
技術文件 (1)
9533 的替代選擇
找到 1 個產品
相關產品
找到 2 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Great Britain
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Great Britain
承擔產品生產最後程序之國家
關稅編號：85444995
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (10-Jun-2022)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.026
