99-4226-00-07

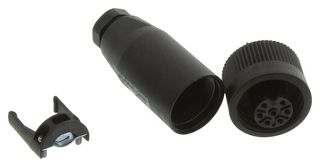

Circular Connector, Miniature Circular Connector, 693 Series, Cable Mount Receptacle, 7 Contacts
圖片僅供舉例說明。 請參閱產品描述。
335 有存貨
需要更多？
17 件可于 1-2 個工作日後配送(新加坡 件庫存)
318 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$746.900 |
| 10+ | NT$736.690 |
| 25+ | NT$726.480 |
| 100+ | NT$716.260 |
| 250+ | NT$701.570 |
| 500+ | NT$687.540 |
價格Each
最少: 1
多項: 1
NT$746.90
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商BINDER
製造商產品編號99-4226-00-07
訂購代碼1778886
Product Range693 Series
技術資料表
Connector TypeMiniature Circular Connector
Product Range693 Series
Circular Connector Shell StyleCable Mount Receptacle
No. of Contacts7Contacts
Circular Connector Contact TypeSolder Socket
Coupling Style-
Connector Body MaterialPBT (Polybutylene Terephthalate) Body
Connector Body Plating-
Contact MaterialBrass, Bronze
Contact PlatingSilver
IP RatingIP67
SVHCLead (25-Jun-2025)
產品總覽
The 99-4226-00-07 is a 6+PE-contact 250V/10A unshielded female Circular Connector with silver-plated bronze/brass contacts, PBT (UL94V-0) contact body and housing. The 693 series socket with RD 24 screw locking system, solder termination, cable mounting style. It accepts 0.75mm² wire, 6 to 9.5mm cable outlet.
- 4000V Rated impulse voltage
- ≤5mΩ Volume resistivity
- <gt/>500 mating cycles Mechanical operation
- IP67 Protection rating
應用
Power Management, Industrial
技術規格
Connector Type
Miniature Circular Connector
Circular Connector Shell Style
Cable Mount Receptacle
Circular Connector Contact Type
Solder Socket
Connector Body Material
PBT (Polybutylene Terephthalate) Body
Contact Material
Brass, Bronze
IP Rating
IP67
Product Range
693 Series
No. of Contacts
7Contacts
Coupling Style
-
Connector Body Plating
-
Contact Plating
Silver
SVHC
Lead (25-Jun-2025)
技術文件 (1)
相關產品
找到 5 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Germany
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Germany
承擔產品生產最後程序之國家
關稅編號：85366990
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:Lead (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.034
