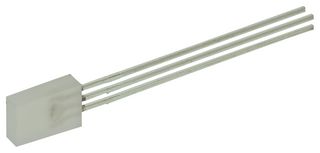

HLMP-0800
LED, Green, Red, Through Hole, 2mm x 5mm, 100 °, Rectangular, R 25mA, G 25mA
9,995 有存貨
需要更多？
9,995 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$37.390 |
| 10+ | NT$26.420 |
| 25+ | NT$24.180 |
| 50+ | NT$21.940 |
| 100+ | NT$19.700 |
| 500+ | NT$16.690 |
價格Each
最少: 1
多項: 1
NT$37.39
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商BROADCOM
製造商產品編號HLMP-0800复制
製造商標準前置時間14 週
訂購代碼1003138
技術資料表
LED ColourGreen, Red
LED MountingThrough Hole
Bulb Size2mm x 5mm
Viewing Angle100°
Lens ShapeRectangular
Forward Current / ColourR 25mA, G 25mA
Luminous Intensity / ColourR 2.1mcd, G 2.6mcd
Forward Voltage / ColourR 1.9V, G 2.2V
Wavelength / ColourR 626nm, G 570nm
Product Range-
Automotive Qualification Standard-
MSL-
SVHCNo SVHC (04-Feb-2026)
產品總覽
The HLMP-0800 is a 2 x 5mm rectangular Bicolour LED Lamp in high efficiency red/high performance green. This bicolour LED lamp is mounted on a central common cathode lead for maximum on-axis viewability. Colours between HER and green can be generated by independently pulse width modulating the LED chips.
- 2 Colours operation
- 3 Leads with one common cathode
- Diffused, wide visibility range
應用
Consumer Electronics
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技術規格
LED Colour
Green, Red
Bulb Size
2mm x 5mm
Lens Shape
Rectangular
Luminous Intensity / Colour
R 2.1mcd, G 2.6mcd
Wavelength / Colour
R 626nm, G 570nm
Automotive Qualification Standard
-
SVHC
No SVHC (04-Feb-2026)
LED Mounting
Through Hole
Viewing Angle
100°
Forward Current / Colour
R 25mA, G 25mA
Forward Voltage / Colour
R 1.9V, G 2.2V
Product Range
-
MSL
-
相關產品
找到 3 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Thailand
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Thailand
承擔產品生產最後程序之國家
關稅編號：85414100
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (04-Feb-2026)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.0003
