P01120418

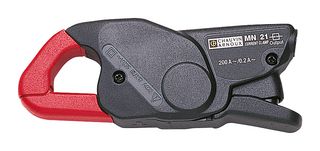

Current Probe, MN21, 4mm Right Angle Banana Plug, Shrouded, Current Clamp, 200 A, 100 mA
圖片僅供舉例說明。 請參閱產品描述。
可供訂購
製造商標準交貨時間：6 週
有貨時通知我
| 數量 | 價格 |
|---|---|
| 1+ | NT$13,334.150 |
價格Each
最少: 1
多項: 1
NT$13,334.15
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商產品編號P01120418复制
製造商標準前置時間6 週
訂購代碼2945514
其他名稱MN21
技術資料表
Meter Side Connector4mm Right Angle Banana Plug, Shrouded
Probe Side ConnectorCurrent Clamp
Current Range Max200A
Current Range Min100mA
For Use WithMultimeter, Power Analyser
Product Range-
SVHCNo SVHC (16-Jul-2019)
產品總覽
AC current clamp for measuring alternating currents up to 240A with a multimeter or a power analyser.
- CAT III 600V or CAT IV 300V electrical safety
- IP40 casing protection rating
- Compact and ergonomic jaw
- Transformation ratio of 1000:1
- 600VRMS operating voltage
- Output via lead and isolated Ø 4mm male plugs
- Output protected against voltage surges
應用
Test & Measurement
內容
Clamp model, Operating manual.
附註
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
技術規格
Meter Side Connector
4mm Right Angle Banana Plug, Shrouded
Current Range Max
200A
For Use With
Multimeter, Power Analyser
SVHC
No SVHC (16-Jul-2019)
Probe Side Connector
Current Clamp
Current Range Min
100mA
Product Range
-
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：France
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：France
承擔產品生產最後程序之國家
關稅編號：90309000
US ECCN:3A992.a
EU ECCN:NLR
符合 RoHS 規定：待通知
符合 RoHS 鄰苯二甲酸酯類規定:待通知
SVHC:No SVHC (16-Jul-2019)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.385
