EGPD101ELL221MK25H

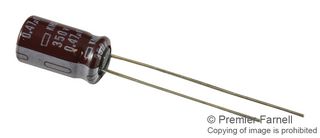

Electrolytic Capacitor, 220 µF, 100 V, ± 20%, Radial Leaded, 2000 hours @ 135°C, Polar
圖片僅供舉例說明。 請參閱產品描述。
382 有存貨
需要更多？
10 件可于 3-4 個工作日後配送(英國 件庫存)
372 件可于 4-5 個工作日後配送(美國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$105.100 |
| 10+ | NT$57.890 |
| 100+ | NT$45.600 |
| 500+ | NT$44.690 |
| 1000+ | NT$43.780 |
| 2000+ | NT$42.870 |
價格Each
最少: 1
多項: 1
NT$105.10
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商CHEMI-CON
製造商產品編號EGPD101ELL221MK25H复制
製造商標準前置時間24 週
訂購代碼2841978
Product RangeGPD Series
技術資料表
Capacitance220µF
Voltage(DC)100V
Capacitance Tolerance± 20%
Capacitor TerminalsRadial Leaded
Lifetime @ Temperature2000 hours @ 135°C
PolarityPolar
Capacitor Case / PackageRadial Leaded
Lead Spacing5mm
Product Diameter12.5mm
Product Length-
Product Width-
Product Height25mm
Product RangeGPD Series
ESR0.068ohm
Ripple Current2.14A
Operating Temperature Min-40°C
Operating Temperature Max135°C
Qualification-
SVHCNo SVHC (27-Jun-2024)
產品總覽
The GPD series capacitors from United Chemi-Con are radial leaded miniature aluminium electrolytic capacitors. These are low impedance, high ripple current and long life capacitors. Suitable for automobile modules and other high temperature applications.
- Capacitance values ranges from 160μF to 12000μF
- Voltage rating available from 25VDC to 100VDC
- Capacitor size varies from 12.5mm x 20mm to 18mm x 40mm
- Capacitance tolerance is ±20%
- Operating temperature range from -40˚C to 135˚C
- Endurance with ripple current is 2000hours to 3000hours at 125˚C to 135˚C
- Solvent resistant type
應用
Industrial, Consumer Electronics, Portable Devices, Power Management
技術規格
Capacitance
220µF
Capacitance Tolerance
± 20%
Lifetime @ Temperature
2000 hours @ 135°C
Capacitor Case / Package
Radial Leaded
Product Diameter
12.5mm
Product Width
-
Product Range
GPD Series
Ripple Current
2.14A
Operating Temperature Max
135°C
SVHC
No SVHC (27-Jun-2024)
Voltage(DC)
100V
Capacitor Terminals
Radial Leaded
Polarity
Polar
Lead Spacing
5mm
Product Length
-
Product Height
25mm
ESR
0.068ohm
Operating Temperature Min
-40°C
Qualification
-
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Japan
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Japan
承擔產品生產最後程序之國家
關稅編號：85322200
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.006509
