10VV1
Power Line Filter, General Purpose, 250 VAC, 10 A, Single Phase, 2 Stage, Chassis Mount

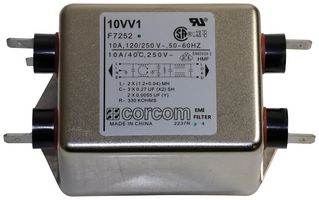

圖片僅供舉例說明。 請參閱產品描述。
199 有存貨
需要更多？
15 件可于 1-2 個工作日後配送(新加坡 件庫存)
184 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$2,674.240 |
| 2+ | NT$2,339.960 |
| 3+ | NT$1,938.820 |
| 5+ | NT$1,738.260 |
| 10+ | NT$1,604.540 |
| 20+ | NT$1,497.570 |
價格Each
最少: 1
多項: 1
NT$2,674.24
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商產品編號10VV1
訂購代碼3133334
Product RangeV Series
其他名稱6609043-3
技術資料表
Filter ApplicationsGeneral Purpose
Voltage Rating250VAC
Current Rating10A
No. of PhasesSingle Phase
No. of Stages2 Stage
Filter MountingChassis Mount
Filter Input TerminalsQuick Connect
Filter Output TerminalsQuick Connect
Product RangeV Series
SVHCNo SVHC (27-Jun-2024)
產品總覽
The 10VV1 is a 1-phase 10A multipurpose Power Line RFI Filter for emission control and it is designed for susceptibility use when equipment impedance at RF frequencies is low. The V series is effective to control emissions in equipment using SCR and T²L circuits for compliance with FCC part 15, subpart J and EN55022, level-A, down to 150kHz. It offers an N=3 line to ground impedance to common mode and an N=5 impedance for line to line differential mode interference. It has quick connect terminals.
- 0.25" Spade terminals
- Flanged mounting
- -10 to 40°C Operating temperature range
技術規格
Filter Applications
General Purpose
Current Rating
10A
No. of Stages
2 Stage
Filter Input Terminals
Quick Connect
Product Range
V Series
Voltage Rating
250VAC
No. of Phases
Single Phase
Filter Mounting
Chassis Mount
Filter Output Terminals
Quick Connect
SVHC
No SVHC (27-Jun-2024)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：85363010
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.292567
