FIT0212

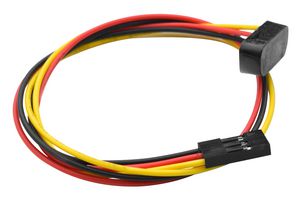

Sensor, Liquid Level, 0.1 A, 5 V, 300 mm
不再生產
產品訊息
製造商DFROBOT
製造商產品編號FIT0212复制
訂購代碼3879691
技術資料表
Level Switch TypeLiquid Level Switch
Media Type-
Process Connection Type-
Operating Pressure Max-
Housing Material-
Switch Output-
Electrical ConnectionCable
Supply Voltage Min-
Supply Voltage Max-
Operating Temperature Min-25°C
Operating Temperature Max125°C
Product Range-
SVHCNo SVHC (04-Feb-2026)
產品總覽
This non-contact liquid level switch can be triggered when the liquid level falls below the sensor attached to the outside surface of a non-metal container.
- Power supply: 5V
- Working current: 25uA
- Working temperature: -25℃ to125℃
- Thickness Range(TR): 1mm to 3mm
技術規格
Level Switch Type
Liquid Level Switch
Process Connection Type
-
Housing Material
-
Electrical Connection
Cable
Supply Voltage Max
-
Operating Temperature Max
125°C
SVHC
No SVHC (04-Feb-2026)
Media Type
-
Operating Pressure Max
-
Switch Output
-
Supply Voltage Min
-
Operating Temperature Min
-25°C
Product Range
-
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：90261089
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (04-Feb-2026)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.01
