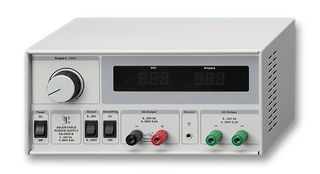

EA-3050B
Bench Power Supply, Adjustable, 4 Output, 0 V, 300 V, 500 mA, 5 A
不再生產
產品訊息
製造商產品編號EA-3050B复制
訂購代碼1437528
Product RangeEA-3000 B Series
技術資料表
Power Supply Output TypeAdjustable
No. of Outputs4 Output
Output Voltage Min0V
Output Voltage Max300V
Output Current Min500mA
Output Current Max5A
Power Rating150W
Supply Voltage Min207VAC
Supply Voltage Max253VAC
Manufacturer Warranty2 Years
Product RangeEA-3000 B Series
Plug TypeEU, UK
SVHCTo Be Advised
EA-3050B 的替代選擇
找到 1 個產品
產品總覽
The EA-3050B is a universal power supplier from EA offering a flexible solution to common laboratory and workshop requirements.
- Adjustable insulated transformer
- 0-30 / 0-300V AC and DC output voltage
- 0-5A / 0.5A output current
- 3 Digit display for voltage and current
- Case closed on top and bottom
- Safety output socket
- 100% duty cycle
- Safety EN 61010, EN 60950 and EMI EN 61326
應用
Test & Measurement, Power Management, Consumer Electronics, Industrial
內容
Mains power lead
附註
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
技術規格
Power Supply Output Type
Adjustable
Output Voltage Min
0V
Output Current Min
500mA
Power Rating
150W
Supply Voltage Max
253VAC
Product Range
EA-3000 B Series
SVHC
To Be Advised
No. of Outputs
4 Output
Output Voltage Max
300V
Output Current Max
5A
Supply Voltage Min
207VAC
Manufacturer Warranty
2 Years
Plug Type
EU, UK
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：85044095
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:To Be Advised
下載產品合規憑證
產品合規憑證
重量 (公斤)：11.5
