FC2004B01-FHYYBW-51SE

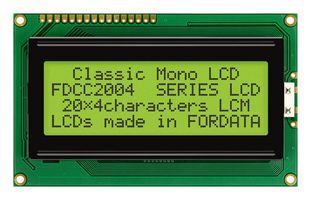

Alphanumeric LCD, 20 x 4, 5V, Transflective
圖片僅供舉例說明。 請參閱產品描述。
製造商FORDATA
製造商產品編號FC2004B01-FHYYBW-51SE
訂購代碼3565082
其他名稱FC2004B01-FHYYBW-51SE, FC2004B01-FHYYBW-51
您的零件号
技術資料表
可供訂購
有貨時通知我
| 數量 | 價格 |
|---|---|
| 1+ | NT$688.400 |
| 5+ | NT$649.270 |
| 10+ | NT$605.210 |
| 50+ | NT$581.840 |
| 100+ | NT$566.850 |
| 250+ | NT$562.070 |
價格Each
最少: 1
多項: 1
NT$688.40
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商FORDATA
製造商產品編號FC2004B01-FHYYBW-51SE
訂購代碼3565082
其他名稱FC2004B01-FHYYBW-51SE, FC2004B01-FHYYBW-51
技術資料表
Character Count x Line20 x 4
Display Appearance-
Logic Voltage5V
Interface Type-
Font Set-
Display ModeTransflective
Character Size4.75mm
LCD Display TypeSTN
Module Size98mm x 60mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourYellow Green
Product Range-
SVHCNo SVHC (25-Jun-2020)
產品總覽
- Character LCD (Liquid Crystal Display) module
- 20 characters x 4 lines
- STN transflective, yellow/green LED backlight
- Black characters on a yellow/green background appearance
- 5V driving voltage, 16 SIL top left connection
- Operating temperature from -20°C to +70°C
- Chip on board construction
- 98.00mm x 60.0mm x 14.00mm overall size
- 76.00mm x 25.20mm viewing area
- 4.75mm character height
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技術規格
Character Count x Line
20 x 4
Logic Voltage
5V
Font Set
-
Character Size
4.75mm
Module Size
98mm x 60mm
Operating Temperature Max
70°C
Backlighting Colour
Yellow Green
SVHC
No SVHC (25-Jun-2020)
Display Appearance
-
Interface Type
-
Display Mode
Transflective
LCD Display Type
STN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：85312095
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:待通知
SVHC:No SVHC (25-Jun-2020)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.07
