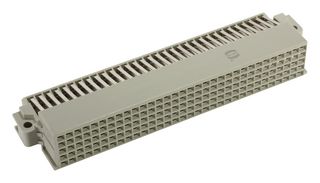

02 04 160 1101

The 02 04 160 1101 is a 160-position 5-row female HAR-BUS® 64 VME64X Transition Connector System. Angled orientation, 2.54mm pitch, with flange, copper alloy contacts and solder termination. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.

• PL 1 according to IEC 61076-4-113 500 mating cycles
• Improved signal/ground ratio for reliable signal data transfer at rates up to 320MBps
• Four preleading contacts to prevent glitches during insertion of new cards into backplane
• PBT Insulation with UL94V-0 classification
• Partially gold plated terminations with formed tips serve as contact area for rear transition boards

應用

Industrial
