6753-ACAA-A000

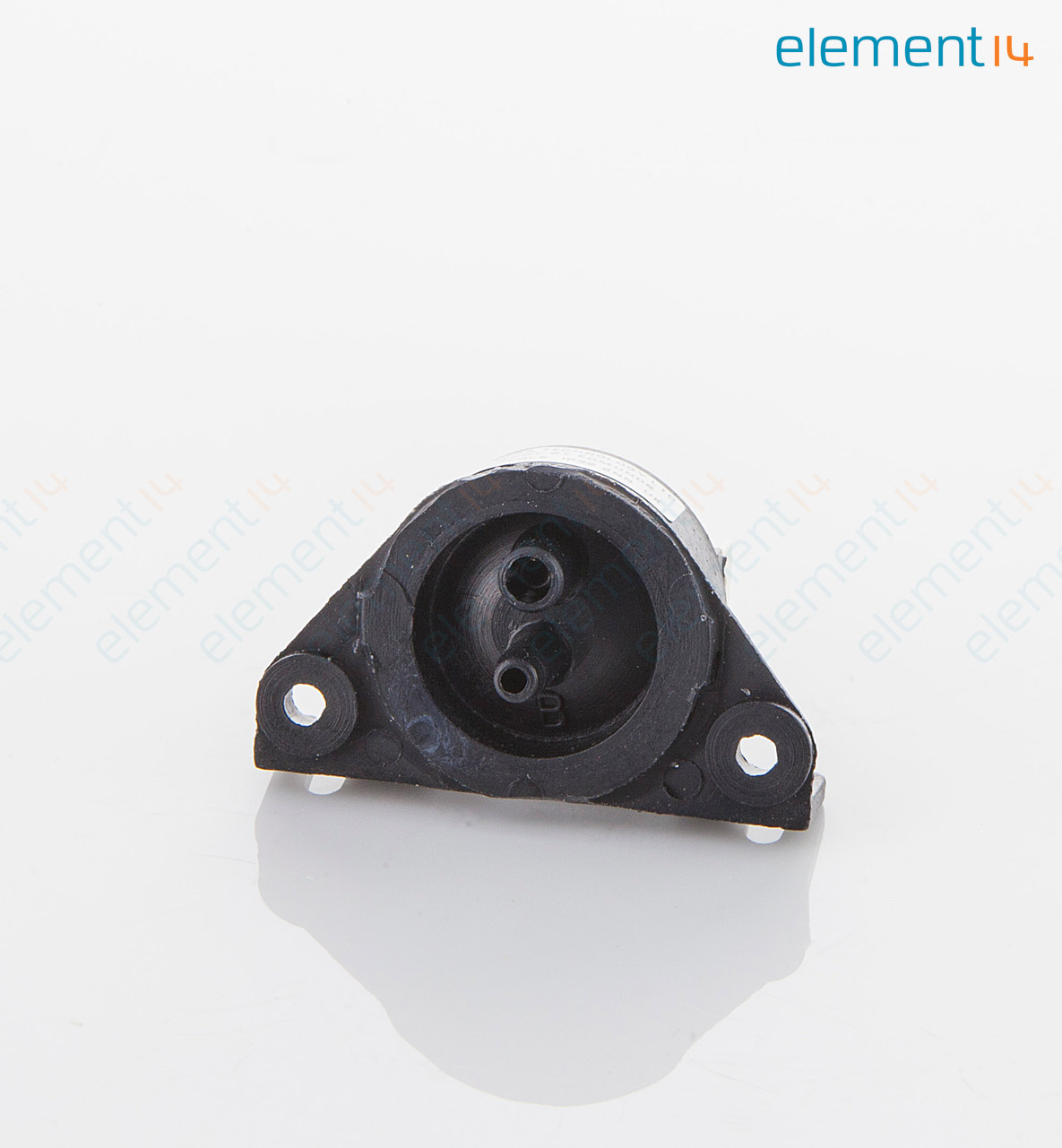

Pressure Switch, 4mm Spout, 4.368 mbar, 6.832 mbar, SPST-NO, Panel / Chassis, Quick Connect

HERGA 6753-ACAA-A000
HERGA 6753-ACAA-A000
360°
×
×

圖片僅供舉例說明。 請參閱產品描述。

製造商:
HERGA HERGA
製造商產品編號:
6753-ACAA-A000
訂購代碼:
7230497
產品範圍
6753 Series
查看所有技術文件

產品總覽

The 6753-ACAA-A000 is a Low Air Pressure/Vacuum Switch with glass filled nylon 12 body, SPST-NO gold-plated silver mounted on phosphor-bronze blades contact and 100 to 300cc/minute factory bleed setting. Ideal for long tube length applications. This switch provides a high specification in a small, versatile body shell. Great care has been taken in the switch unit design, keeping the moving mass and therefore inertia to a minimum. This means that it can operate at a high cycle rate with low pressure, vacuum or pressure differential. This design feature can be used when measuring pressure pulses such as on component counting applications and used with herga safe edges. The switch will operate very rapidly keeping the switch delay to a minimum. For good repeatable switching, the contacts are gold plated on solid silver. The electrical rating of the switch is dependent on the contact pressure.
  • 0.05R Contact resistance
  • 1 x 106 cycles Mechanical Life
  • -5 to 50°C Temperature range

應用

Sensing & Instrumentation

產品訊息

想要查看類似產品?只要選擇以下所需屬性並按下按鈕即可 ×


:
4mm Spout

:
4.368mbar

:
6.832mbar

:
SPST-NO

:
Panel / Chassis

:
Quick Connect

:
-

:
-

:
6753 Series

尋找類似產品 選擇並修改上方屬性,尋找類似的產品。
