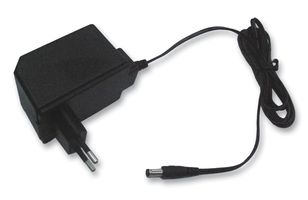

77DB-06-12
POWER SUPPLY, AC/AC, 10W, 12V, 0.5A, UK
50 有存貨
需要更多？
50 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$421.380 |
| 5+ | NT$368.700 |
| 10+ | NT$305.500 |
| 50+ | NT$273.900 |
| 100+ | NT$252.830 |
| 250+ | NT$247.780 |
價格Each
最少: 1
多項: 1
NT$421.38
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商IDEAL POWER
製造商產品編號77DB-06-12
訂購代碼2368011
技術資料表
Power Supply ApplicationsITE
No. of Outputs1 Output
Output Power6W
Output Power Max6W
Output Voltage VAC12VAC
Output Current500mA
Plug TypeUK Type G
Output Connector2.1mm x 5.5mm x 12mm
Input Voltage AC Max240V
Power Supply Output TypeFixed
Product Range-
SVHCNo SVHC (25-Jun-2025)
產品總覽
The 77DB-06-12 is a 12VAC/10W UK plug-in linear AC to AC Power Supply is a lightweight, with one-shot thermal fuse protection, UL94V-0 rated enclosure, 3-pin input cable, 6 to 7VA output power and 1 minute test time.
- Class-B insulation
- 80% Efficiency
- -10 to 40°C Operating temperature range
- Meets efficiency Level VI and (EU) 2019/1782
- 1.8m cable with 2.5mm barrel connection
- Approved to UKCA, CE, TUV, RoHS, and REACH
- UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.
應用
Power Management
附註
As with all AC/AC linear power supplies and transformers, the output voltage is influenced by both the applied load and AC mains supply voltage
技術規格
Power Supply Applications
ITE
Output Power
6W
Output Voltage VAC
12VAC
Plug Type
UK Type G
Input Voltage AC Max
240V
Product Range
-
No. of Outputs
1 Output
Output Power Max
6W
Output Current
500mA
Output Connector
2.1mm x 5.5mm x 12mm
Power Supply Output Type
Fixed
SVHC
No SVHC (25-Jun-2025)
技術文件 (1)
相關產品
找到 4 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：85044095
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.285
