BTS700201ESPEVALBRDTOBO1
Evaluation Board, BTS70020-1ESP, Power Management, Load Switch, High Side Switch

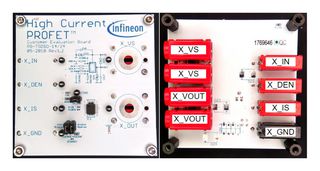

圖片僅供舉例說明。 請參閱產品描述。
3 有存貨
需要更多？
3 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$3,751.050 |
價格Each
最少: 1
多項: 1
NT$3,751.05
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商INFINEON
製造商產品編號BTS700201ESPEVALBRDTOBO1
訂購代碼3865647
其他名稱SP005560801, BTS70020-1ESP EVALBRD
技術資料表
Silicon ManufacturerInfineon
Silicon Core NumberBTS70020-1ESP
Kit Application TypePower Management - Load Switch
Application Sub TypeHigh Side Switch
Kit ContentsEval Board BTS70020-1ESP
Product Range-
SVHCNo SVHC (21-Jan-2025)
產品總覽
PROFET+2 12V BTS70020-1ESP evaluation board, Board comes with 1 high-side switch of BTS70020-1ESP. The purpose of this board is to provide a quick and easy solution for customers’ lab evaluations. The Evaluation board is capable to drive resistive, capacitive and/or inductive loads.
- High-side switch with diagnosis and embedded protection
- Capacitive load switching mode
- Operating voltage range 3.1-28V with 3.3V and 5V compatible logic input
- Protection: current tripping, over-temperature/voltage, load dump, reverse polarity, short-circuit
- Diagnosis: load current sense output
- Optimized for design flexibility across family by pin to pin and external components compatibility
- Miniaturization/shrink of the PCB area
- 50% reduced internal operating current consumption
- Simplified & cost efficient ground network
- Suitable for driving glow plug, heating loads, DC motor and for power distribution
技術規格
Silicon Manufacturer
Infineon
Kit Application Type
Power Management - Load Switch
Kit Contents
Eval Board BTS70020-1ESP
SVHC
No SVHC (21-Jan-2025)
Silicon Core Number
BTS70020-1ESP
Application Sub Type
High Side Switch
Product Range
-
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Germany
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Germany
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.24
