EVAL-M1-101TFTOBO1

Evaluation Board, IMC101T-F048, PMSM Motor, Power Management - Motor Control

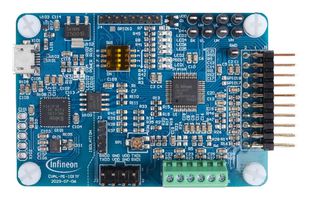

INFINEON EVAL-M1-101TFTOBO1
×

圖片僅供舉例說明。 請參閱產品描述。

製造商:
INFINEON INFINEON
製造商產品編號:
EVAL-M1-101TFTOBO1
訂購代碼:
3779650

產品總覽

EVAL-M1-101TF is a control board for iMOTION™ Modular Application Design Kit (MADK) platform. It is powered by IMC101T-F048 iMOTION™ Motor Control IC featuring advanced Motor Control Engine (MCE), that enables state-of-the-art Sensorless Field Oriented Control (FOC) without need for any coding. IMC101T-F048 is a part of the iMOTION™ IMC100 series, which is the next generation of well established iMOTION™ motor control IC platform dedicated to field oriented control of PMSM (BLDC) motors. This control board together with growing number of matching iMOTION™ MADK power boards with M1 connector, create a wide portfolio of 3-phase inverter options, scalable in power ratings and operating voltage.
  • Complete kit for running any permanent magnet motor via sensorless sinusoidal control
  • Micro-USB connector and on-board debugger galvanically isolated from power side
  • Capable of 3-phase and type 3 of 2-phase modulation
  • Connector for digital hall switches or analogue hall sensors
  • Connector to input analogue or digital (frequency, duty) speed control signals
  • LEDs, switches and potentiometer to test scripting capabilities
  • Test points for direct measurement of voltages, currents

警告

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
