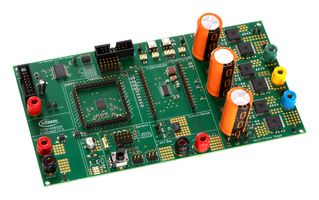

TLE9140EQWEVALTOBO1
Evaluation Board, TLE9140EQW, 3-Phase BLDC Motor Driver
10 有存貨
需要更多？
10 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$12,514.450 |
價格Each
最少: 1
多項: 1
NT$12,514.45
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商INFINEON
製造商產品編號TLE9140EQWEVALTOBO1
訂購代碼4397744
技術資料表
Application Sub Type3-Phase BLDC Driver
Silicon ManufacturerInfineon
Kit Application TypePower Management - Motor Control
Silicon Core NumberTLE9140EQW
Kit ContentsEvaluation Board TLE9140EQW
Product Range-
SVHCNo SVHC (25-Jun-2025)
產品總覽
TLE9140EQWEVALTOBO1 is an evaluation board intended to provide a flexible, easy-to-use prototyping and developing tool for evaluating and testing Infineon’s TLE9140EQW 3-phase BLDC gate driver, which companions the TLE987x MOTIX™ MCU device family.
- Automotive 24/48V 3-phase BLDC motor drive – easy evaluation and fast prototyping
- Main board with the 3-phase gate driver IC TLE9140EQW
- 32bit embedded power IC TLE9879 based on Arm® Cortex® M
- B6 bridge with 100V OptiMOS 5, IAUT300N10S5N015 with ultra-low Rds(on)
- Supports 48V applications up to 1.5KW
- Board enables 2 alternative supply concepts
- Jumpers are available to connect 48V embedded power companion general MCU
- Onboard debug interface for faster prototyping
- Software support with demo code for FOC via Infineon Developer Centre
- Graphical user interface for register easy access to the driver IC (available for MS Windows only)
技術規格
Application Sub Type
3-Phase BLDC Driver
Kit Application Type
Power Management - Motor Control
Kit Contents
Evaluation Board TLE9140EQW
SVHC
No SVHC (25-Jun-2025)
Silicon Manufacturer
Infineon
Silicon Core Number
TLE9140EQW
Product Range
-
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Germany
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Germany
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.1
