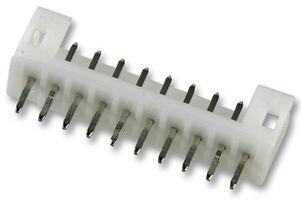

B10B-PH-K-S(LF)(SN)
Pin Header, Wire-to-Board, 2 mm, 1 Rows, 10 Contacts, Through Hole Straight, PH
196,228 有存貨
335 即日起您可預購補貨
78681 件可于 1-2 個工作日後配送(新加坡 件庫存)
117547 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 100+ | NT$8.090 |
| 500+ | NT$6.670 |
| 1000+ | NT$6.410 |
| 2500+ | NT$5.530 |
| 5000+ | NT$5.410 |
| 10000+ | NT$5.240 |
| 20000+ | NT$4.980 |
| 50000+ | NT$4.720 |
價格Each
最少: 100
多項: 100
NT$809.00
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商產品編號B10B-PH-K-S(LF)(SN)
訂購代碼9491880
Product RangePH
技術資料表
Connector SystemsWire-to-Board
Pitch Spacing2mm
No. of Rows1Rows
No. of Contacts10Contacts
Contact Termination TypeThrough Hole Straight
Product RangePH
Connector ShroudShrouded
Contact MaterialBrass
Contact PlatingTin Plated Contacts
Connector TypePCB Header
SVHCNo SVHC (25-Jun-2025)
產品總覽
The PH series top entry, through hole shrouded header from JST are 2.0mm pitch, single row wire to board disconnect crimp style connectors. These are thin, low profile, highly reliable connectors with 8.0mm height mounting height and 4.5mm width. Fully shrouded header has walls on all four sides to prevent improper connection to the mating housing and to prevent the instruction of flux and other contaminants. PH series shrouded headers are compatible with KR, KRD and CR insulation displacement connectors.
- PA 66, UL94V-0, natural (white) material
- Voltage rating of 100VAC/DC
- Temperature range from -25°C to 85°C
- Wire size of 32AWG to 24AWG
- Number of contacts varies from 2 to 16 pins
- Contact material is brass
- Tin plated contact
- UL, CSA and TUV certified
應用
Industrial
技術規格
Connector Systems
Wire-to-Board
No. of Rows
1Rows
Contact Termination Type
Through Hole Straight
Connector Shroud
Shrouded
Contact Plating
Tin Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Pitch Spacing
2mm
No. of Contacts
10Contacts
Product Range
PH
Contact Material
Brass
Connector Type
PCB Header
技術文件 (1)
B10B-PH-K-S(LF)(SN) 的替代選擇
找到 3 個產品
相關產品
找到 2 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
關稅編號：85366930
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.00055
