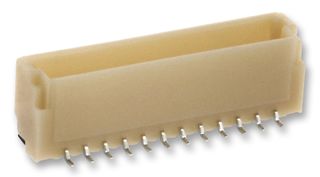

BM12B-SRSS-TB (LF)(SN)
Pin Header, Top Entry, Wire-to-Board, 1 mm, 1 Rows, 12 Contacts, Surface Mount, SH
圖片僅供舉例說明。 請參閱產品描述。

| 製造商 | JST / JAPAN SOLDERLESS TERMINALS |
|---|---|
| 製造商產品編號 | BM12B-SRSS-TB (LF)(SN)复制 |
| 製造商標準前置時間 | 29 週 |
| 訂購代碼 | 整卷4731817 條帶式包裝1830837 |
| Product Range | SH |
| 其他名稱 | BM12B-SRSS-TB |
| 您的零件号 | |
| 技術資料表 |
15,531 有存貨
需要更多?
15,531 件可于 3-4 個工作日後配送(英國 件庫存)
包裝選項
| 包裝類型 | 數量 | 單價: | 總計 |
|---|---|---|---|
| 條帶式包裝 | 1 | NT$34.530 | NT$34.53 |
| 總計 價格 | NT$34.53 | ||
條帶式包裝
| 數量 | 價格 |
|---|---|
| 1+ | NT$34.530 |
| 37+ | NT$29.320 |
| 112+ | NT$24.930 |
| 300+ | NT$23.590 |
| 750+ | NT$22.250 |
整卷
| 數量 | 價格 |
|---|---|
| 1500+ | NT$19.090 |
| 4500+ | NT$18.540 |
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
| 製造商 | JST / JAPAN SOLDERLESS TERMINALS |
|---|---|
| 製造商產品編號 | BM12B-SRSS-TB (LF)(SN)复制 |
| 製造商標準前置時間 | 29 週 |
| 訂購代碼 | 整卷4731817 條帶式包裝1830837 |
| Product Range | SH |
| 其他名稱 | BM12B-SRSS-TB |
| 技術資料表 | |
| Connector Systems | Wire-to-Board |
| Pitch Spacing | 1mm |
| No. of Rows | 1Rows |
| No. of Contacts | 12Contacts |
| Contact Termination Type | Surface Mount |
| Product Range | SH |
| Connector Shroud | Shrouded |
| Contact Material | Copper |
| Contact Plating | Tin Plated Contacts |
| Connector Type | PCB Header |
| SVHC | No SVHC (21-Jan-2025) |
產品總覽
The BM12B-SRSS-TB is a 12-contact 1-row 1mm pitch Crimp Connector, 1A, 50V rated. This SH series wire to board compact low profile disconnectable connector is made of tin plated copper contact, top entry PC board mounting direction. Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely affect vacuum gripping equipment. The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires and applicable to 28AWG wire gauge.
應用
Industrial
技術規格
| Connector Systems | Wire-to-Board |
|---|---|
| No. of Rows | 1Rows |
| Contact Termination Type | Surface Mount |
| Connector Shroud | Shrouded |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (21-Jan-2025) |
| Pitch Spacing | 1mm |
|---|---|
| No. of Contacts | 12Contacts |
| Product Range | SH |
| Contact Material | Copper |
| Connector Type | PCB Header |
相關產品
找到 1 個產品
法規與環境保護
| 原產地: 承擔產品生產最後程序之國家原產地: | China 承擔產品生產最後程序之國家 |
|---|---|
| 關稅編號: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| 符合 RoHS 規定: | 是 RoHS |
| 符合 RoHS 鄰苯二甲酸酯類規定: | 是 RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| 下載產品合規憑證 | 產品合規憑證 |
| 重量 (公斤): | .000361 |
