87304C

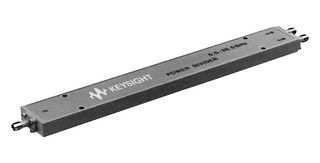

Power Divider, SMA - 3.5mm Receptacle to Receptacle, 1 In - 2 Out, 10 W, 2 to 26.5 GHz
可供訂購
製造商標準交貨時間：8 週
有貨時通知我
| 數量 | 價格 |
|---|---|
| 1+ | NT$59,736.770 |
價格Each
最少: 1
多項: 1
NT$59,736.77
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商產品編號87304C
訂購代碼4865973
技術資料表
Connector Type ASMA
Connector Type A GenderReceptacle
Connector Type BSMA
Connector Type B GenderReceptacle
Operating Frequency Min2GHz
Operating Frequency Max26.5GHz
Input Power Max10W
Impedance-
Product Range-
SVHCNo SVHC (25-Jun-2025)
產品總覽
87304C is a 2 to 26.5GHz compact, hybrid microwave power divider. It is designed for power-splitting applications that require minimal insertion loss and high isolation. This hybrid power divider is excellent for any application where two-way power division with high isolation and low insertion loss are required.
- Band segment: 2.0 to 18, 18 to 26.5GHz
- VSWR: 1.6 at 18 to 26.5GHz
- Insertion loss: 1.4dB (18 to 26.5GHz)
- Isolation: 18dB at 18 to 26.5GHz
- Amplitude tracking: 0.5dB
- 10° phase tracking
- 10W, CW (2:1 maximum load SWR) power rating
- Connectors 3.5mm F, (SMA compatible)
技術規格
Connector Type A
SMA
Connector Type B
SMA
Operating Frequency Min
2GHz
Input Power Max
10W
Product Range
-
Connector Type A Gender
Receptacle
Connector Type B Gender
Receptacle
Operating Frequency Max
26.5GHz
Impedance
-
SVHC
No SVHC (25-Jun-2025)
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
關稅編號：85176200
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.7
