U1816E/-711

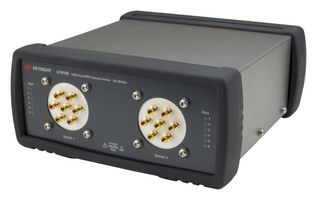

Coaxial Switch, Dual SP6T, 2.4mm Coaxial Female, 1.5 dB Insertion Loss, 70 dB Isolation, 50 GHz
可供訂購
在這裡登記您有興趣的產品
| 數量 | 價格 |
|---|---|
| 1+ | NT$935,061.770 |
價格Each
最少: 1
多項: 1
NT$935,061.77
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商產品編號U1816E/-711复制
訂購代碼4908797
Product RangeU1816x Series
技術資料表
Switch TypeCoaxial Switch, Dual SP6T
Frequency50GHz
Insertion Loss1.5dB
Isolation70dB
Connector Type2.4mm Coaxial Female
Product RangeU1816x Series
SVHCNo SVHC (04-Feb-2026)
產品總覽
U1816E/-711 is a DC to 50GHz, USB-controlled dual SP6T switch. It allows switching of multiple signal paths without physically changing the connections. This allows multiple tests to be performed with the same setup, eliminating the need for frequent connects and disconnects. An entire testing process can be automated, increasing the throughput in high-volume production environments.
- Available with option (711): AC / DC adapter for non US / Canada
- Isolation (min) : 95dB (DC to 9GHz) and 70dB (40 to 50GHz)
- VSWR (max): 30 to 50GHz: 1.60
- 0.05dB insertion loss repeatability
- 2.4 mm (f) connector
- USB drive method
- Life cycles: 1 million
- DC supply voltage (power adapter provided): 15 to 19V
- Operating temperature range from 0°C to 55°C
技術規格
Switch Type
Coaxial Switch, Dual SP6T
Insertion Loss
1.5dB
Connector Type
2.4mm Coaxial Female
SVHC
No SVHC (04-Feb-2026)
Frequency
50GHz
Isolation
70dB
Product Range
U1816x Series
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Malaysia
承擔產品生產最後程序之國家
關稅編號：85365080
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：Y-Ex
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (04-Feb-2026)
下載產品合規憑證
產品合規憑證
重量 (公斤)：3
