8191

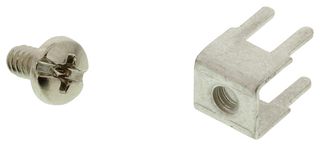

The 8191 is a vertical PC Screw Terminal with tin-plated brass contact and nickel-plated brass binding head screw. These easy-to-mount, multipurpose screw type terminals are a practical, low-cost alternative to PC screw type edge connectors, barrier blocks, terminal boards and terminal strips. Steadfast and easy to install will accommodate solid or stranded wire, crimp type terminals or lugs. Multi-placement of these low-profile terminals make them ideally suited for high density packaging.

• Stable, no-rock design with exclusive anti-rotational feature
• Easily mounts with four legs into pre-drilled or punched holes
• Accepts 22 to 14AWG solid or stranded wire, crimp type terminals or lugs
• Space-saving and time saving
• Easy accessibility for PC board testing
• Binding screw is positioned above board level to avoid wicking during wave soldering

應用

Industrial, Test & Measurement
