19006-0011

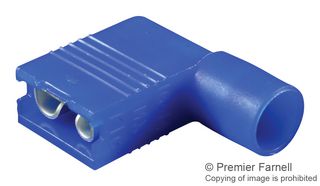

Quick Disconnect Terminal, Avikrimp 19006 Series, Female Quick Disconnect, 6.35mm x 0.81mm
圖片僅供舉例說明。 請參閱產品描述。
製造商MOLEX
製造商產品編號19006-0011复制
製造商標準前置時間16 週
訂購代碼2579858
Product RangeAvikrimp 19006 Series
其他名稱190060011, BB-5221, 19006-0011
您的零件号
2,820 有存貨
需要更多？
2,820 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 10+ | NT$25.420 |
| 100+ | NT$22.880 |
| 500+ | NT$21.520 |
| 1000+ | NT$20.000 |
| 2000+ | NT$18.640 |
| 3000+ | NT$17.960 |
價格Each
最少: 10
多項: 10
NT$254.20
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商MOLEX
製造商產品編號19006-0011复制
製造商標準前置時間16 週
訂購代碼2579858
Product RangeAvikrimp 19006 Series
其他名稱190060011, BB-5221, 19006-0011
技術資料表
Product RangeAvikrimp 19006 Series
Terminal TypeFemale Quick Disconnect
Tab Size - Metric6.35mm x 0.81mm
Tab Size - Imperial0.25" x 0.032"
Wire Size AWG Min16AWG
Wire Size AWG Max14AWG
Insulator ColourBlue
Conductor Area CSA2mm²
Insulator MaterialNylon (Polyamide)
Terminal MaterialBrass
SVHCNo SVHC (04-Feb-2026)
產品總覽
The 19006-0011 is an Avikrimp™ female flag quick disconnect made of brass with tin plated finish for 16 to 14AWG wire. This 190006 series fully insulated quick disconnect comes with nylon (PA) insulation and closed barrel. Flags are used when there is a space constraint and a regular straight quick disconnect is too large. Providing fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminals are available in a variety of options to meet industry requirements.
- Glow-wire compliant
- Accommodates multiple standard tab sizes
- Provides flexibility for a wide variety of applications
- Provides space-savings designs
- Ensures optimum safety from electric shock
- UL94V-2 flammability rating
- Maximum voltage is 600V
- Operating temperature range from -65°C to +105°C
應用
Automotive, Consumer Electronics, Industrial
技術規格
Product Range
Avikrimp 19006 Series
Tab Size - Metric
6.35mm x 0.81mm
Wire Size AWG Min
16AWG
Insulator Colour
Blue
Insulator Material
Nylon (Polyamide)
SVHC
No SVHC (04-Feb-2026)
Terminal Type
Female Quick Disconnect
Tab Size - Imperial
0.25" x 0.032"
Wire Size AWG Max
14AWG
Conductor Area CSA
2mm²
Terminal Material
Brass
19006-0011 的替代選擇
找到 5 個產品
相關產品
找到 1 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
關稅編號：85369010
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (04-Feb-2026)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.000717
