50105C

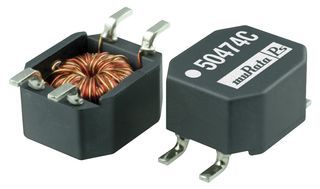

Choke, Surface Mount, 1 mH, 5000 Series, 700 mA, 7mm x 6mm x 3.5mm
圖片僅供舉例說明。 請參閱產品描述。
產品訊息
製造商產品編號50105C
訂購代碼2062865
Product Range5000 Series
技術資料表
DC Current Rating700mA
Inductance1mH
Product Range5000 Series
Impedance-
Inductor Case / Package-
Product Length7mm
Product Width6mm
Product Height3.5mm
Qualification-
SVHCNo SVHC (25-Jun-2025)
產品總覽
The 50105C is a 700mA surface-mount Common Mode Choke designed to attenuate up to 100MHz common mode noise where line filtering is required. Backward compatible with Sn/Pb soldering systems and the pin is of pure tin dip finish.
- J-STD-020C Reflow
- UL94V-0 Flammability rating
應用
Power Management, Communications & Networking
技術規格
DC Current Rating
700mA
Product Range
5000 Series
Inductor Case / Package
-
Product Width
6mm
Qualification
-
Inductance
1mH
Impedance
-
Product Length
7mm
Product Height
3.5mm
SVHC
No SVHC (25-Jun-2025)
相關產品
找到 1 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：85045000
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.000711
