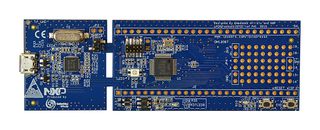

OM13087UL
Development Board, LPC1115 MCU, LPCXpresso, Integrated CMSIS-DAP Debug Probe
可供訂購
製造商標準交貨時間：17 週
有貨時通知我
| 數量 | 價格 |
|---|---|
| 1+ | NT$1,107.000 |
價格Each
最少: 1
多項: 1
NT$1,107.00
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商NXP
製造商產品編號OM13087UL
訂購代碼2820406
技術資料表
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameLPC11xx
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0
Silicon Core NumberLPC1115
Kit ContentsDev Board LPCXpresso LPC1115 w/CMSIS Probe, Card Insert with Links to Installation Information
Product Range-
SVHCNo SVHC (27-Jun-2024)
產品總覽
OM13087UL is a LPCXpresso board for LPC1115 with CMSIS DAP probe. This LPCXpresso board is populated with the LPC1115 to demonstrate and enable features of the LPC1100 product series. The LPCXpresso LPC1115 combines the industry‘s lowest 32-bit active power consumption of the LPC1115 and the low price point of the LPCXpresso board. The board also includes an onboard, CMSIS-DAP compatible debug probe as well as a connector for use with 3rd party debug probes.
- LPC1115 Cortex-M3
- Integrated CMSIS-DAP debug probe
- Debug probe section of the board can be snapped off to reduce board size
- 10 pin SWD connector for use with an external debug probe
- LPCXpresso debug expansion connectors
內容
LPCXpresso™ LPC1115 with CMSIS probe development board, Card insert with links to installation information.
技術規格
Silicon Manufacturer
NXP
Silicon Family Name
LPC11xx
Core Sub-Architecture
Cortex-M0
Kit Contents
Dev Board LPCXpresso LPC1115 w/CMSIS Probe, Card Insert with Links to Installation Information
SVHC
No SVHC (27-Jun-2024)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
LPC1115
Product Range
-
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：China
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.02
