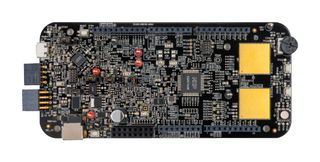

S32K14WEVB-Q064
Evaluation Board, S32K144W, 32bit, ARM, Cortex-M4F
1 有存貨
需要更多？
1 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$6,759.130 |
價格Each
最少: 1
多項: 1
NT$6,759.13
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品總覽
S32K14WEVB-Q064 is an evaluation and development board for general-purpose automotive applications with higher demands for ambient operating temperature range. Based on the 32-bit Arm® Cortex®-M4F S32K144W AEC-Q100 Grade 0 qualified (-40° C to +150° C Ta), the S32K14WEVB-Q064 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.
- UJA1169TK: mini high-speed CAN system basis chip
- TJA1027: LIN 2.2A/SAE J2602 transceiver, TJA1145ATK: high speed CAN transceiver
- OpenSDA: serial and debug adapter with support for several industry-standard debug interfaces
- Easy access to the MCU I/O header pins for prototyping
- Arduino® UNO pint-out compatible with expansion “shield” support
- On-board connectivity for CAN, LIN, UART/SCI interface
- Flexible power supply options: micro USB or external 12 V supply
- 2 x touchpads, 1 x potentiometer, 1 x RGB LED, 2 x push buttons
技術規格
Silicon Manufacturer
NXP
Silicon Family Name
S32K1
Core Sub-Architecture
Cortex-M4F
Kit Contents
Eval Board S32K144W
SVHC
No SVHC (27-Jun-2024)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
S32K144W
Product Range
-
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:5A992.c
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.02
