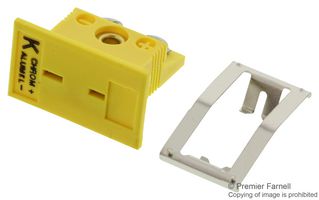

MPJ-K-F
Thermocouple Connector, Miniature, Yellow, Panel, 6x Socket, 1 Row, Type K, 16.7 mm, ANSI, MPJ
8,033 有存貨
2,000 即日起您可預購補貨
2625 件可于 1-2 個工作日後配送(新加坡 件庫存)
5408 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$181.450 |
| 10+ | NT$177.830 |
| 25+ | NT$174.200 |
| 50+ | NT$171.890 |
價格Each
最少: 1
多項: 1
NT$181.45
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商OMEGA
製造商產品編號MPJ-K-F
訂購代碼3410338
Product RangeMPJ Series
技術資料表
GenderSocket
Thermocouple TypeK
Sensor Type-
Connector StyleMiniature (Yellow)
No. of Pins-
Calibration StandardANSI
Operating Temperature Min-
Operating Temperature Max-
Product RangeMPJ Series
SVHCNo SVHC (17-Jan-2022)
產品總覽
MPJ miniature panel jack requires less than half of the panel area required by the standard size connectors. A simple push-on clip is all that is required to retain the connector in a rectangular cut-out, or the optional MSS snap strip can be used to mount a row. Angled terminal screws allow wiring to be done after panel assembly.
- Female miniature panel jack with type K calibration
- Easy mount with spring clip
- Accessible terminal screws
- Color-coded
- Accepts OMEGA’s as well as all industry standard miniature male connectors
- Glass-filled nylon rated from -29 to 180°C (-20 to 356°F)
附註
Connectors come with mounting hardware (spring clip).
技術規格
Gender
Socket
Sensor Type
-
No. of Pins
-
Operating Temperature Min
-
Product Range
MPJ Series
Thermocouple Type
K
Connector Style
Miniature (Yellow)
Calibration Standard
ANSI
Operating Temperature Max
-
SVHC
No SVHC (17-Jan-2022)
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
關稅編號：85369010
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (17-Jan-2022)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.004908
