MPJ-T-F

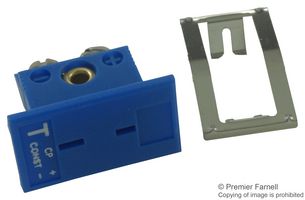

Thermocouple Connector, Miniature, Blue, Panel, 6x Socket, 1 Row, Type T, 16.7 mm, ANSI, MPJ Series
90 有存貨
需要更多?
8 件可于 1-2 個工作日後配送(新加坡 件庫存)
82 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$215.360 |
價格Each
最少: 1
多項: 1
NT$215.36
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
| 製造商 | OMEGA |
|---|---|
| 製造商產品編號 | MPJ-T-F复制 |
| 製造商標準前置時間 | 12 週 |
| 訂購代碼 | 2978092 |
| Product Range | MPJ Series |
| 技術資料表 | |
| Gender | Socket |
| Thermocouple Type | T |
| Sensor Type | - |
| Connector Style | Miniature (Blue) |
| No. of Pins | - |
| Calibration Standard | ANSI |
| Operating Temperature Min | - |
| Operating Temperature Max | - |
| Product Range | MPJ Series |
| SVHC | No SVHC (04-Feb-2026) |
產品總覽
MPJ miniature panel jack requires less than half of the panel area required by the standard size connectors. A simple push-on clip is all that is required to retain the connector in a rectangular cut-out, or the optional MSS snap strip can be used to mount a row. Angled terminal screws allow wiring to be done after panel assembly.
- Female miniature panel jack with type T calibration
- Easy mount with spring clip
- Accessible terminal screws
- Color-coded
- Accepts OMEGA’s as well as all industry standard miniature male connectors
- Glass-filled nylon rated from -29 to 180°C (-20 to 356°F)
附註
Connectors come with mounting hardware (spring clip).
技術規格
| Gender | Socket |
|---|---|
| Sensor Type | - |
| No. of Pins | - |
| Operating Temperature Min | - |
| Product Range | MPJ Series |
| Thermocouple Type | T |
|---|---|
| Connector Style | Miniature (Blue) |
| Calibration Standard | ANSI |
| Operating Temperature Max | - |
| SVHC | No SVHC (04-Feb-2026) |
技術文件 (1)
MPJ-T-F 的替代選擇
找到 1 個產品
相關產品
找到 1 個產品
法規與環境保護
| 原產地: 承擔產品生產最後程序之國家原產地: | United States 承擔產品生產最後程序之國家 |
|---|---|
| 關稅編號: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| 符合 RoHS 規定: | 是 RoHS |
| 符合 RoHS 鄰苯二甲酸酯類規定: | 是 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 下載產品合規憑證 | 產品合規憑證 |
| 重量 (公斤): | .004944 |
