S066M

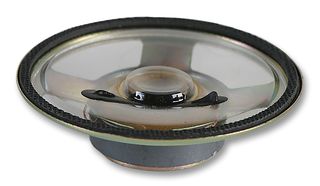

Speaker, Mylar Cone, 66 mm, 3 W, 8 ohm, 4.5 kHz
不再生產
產品訊息
製造商PRO SIGNAL
製造商產品編號S066M复制
訂購代碼107298
技術資料表
Driver TypeGeneral Purpose
Impedance8ohm
External Diameter - Metric66mm
Power Rating Nom3W
Resonant Frequency-
Sound Pressure Level (SPL)-
Speaker ShapeRound
External Diameter - Imperial2.598"
Frequency Response Min350Hz
Frequency Response Max4.5kHz
Product Range-
Speaker MountingPanel Mount
External Depth - Metric20mm
External Depth - Imperial0.787"
SVHCNo SVHC (12-Jan-2017)
S066M 的替代選擇
找到 3 個產品
產品總覽
The S066M is a Mylar Cone Speaker features 3 W power rating and 8ohm impedance.
- Pro Signal products are rated 4.2 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
應用
Audio
技術規格
Driver Type
General Purpose
External Diameter - Metric
66mm
Resonant Frequency
-
Speaker Shape
Round
Frequency Response Min
350Hz
Product Range
-
External Depth - Metric
20mm
SVHC
No SVHC (12-Jan-2017)
Impedance
8ohm
Power Rating Nom
3W
Sound Pressure Level (SPL)
-
External Diameter - Imperial
2.598"
Frequency Response Max
4.5kHz
Speaker Mounting
Panel Mount
External Depth - Imperial
0.787"
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Taiwan
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Taiwan
承擔產品生產最後程序之國家
關稅編號：85182900
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：否
符合 RoHS 鄰苯二甲酸酯類規定:否
SVHC:No SVHC (12-Jan-2017)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.06
