SC0370
Raspberry Pi DigiAMP+ Board, TAS5756M, Audio HAT, 0 °C to 50 °C 40-Pin GPIO Header
99 有存貨
需要更多？
99 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$908.860 |
價格Each
最少: 1
多項: 1
NT$908.86
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
此數量將會新增至訂單確認、發票、出貨備註、網頁確認電子郵件和產品標籤。
產品訊息
製造商RASPBERRY-PI
製造商產品編號SC0370
訂購代碼4527519
技術資料表
Add-On-Card & Module TypeRaspberry Pi Audio DIGIAMP+ HAT
For Use WithRaspberry Pi Computer w/40-Pin GPIO Header
Product Range-
SVHCNo SVHC (27-Jun-2024)
產品總覽

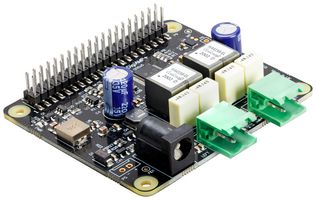

SC0370 is a Raspberry Pi DigiAMP+ high-performance audio HAT and is compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments TAS5756M 24bit 192KHz stereo amplifier, it delivers a direct connection to passive stereo speakers at up to 35 Watts per channel with variable output. It is powered by an external 12 to 24V DC power supply, and connects directly to Raspberry Pi’s GPIO header, providing power to the Raspberry Pi itself. DigiAMP+ is ideal for use in Raspberry Pi-based hi-fi systems.
- 58mm x 65mm form factor
- Power LED
- Alternative power input for hard-wired installations via P5
- 40-pin pass-through GPIO header
- HAT EEPROM write-enabled
- 2 x 35W passive stereo speakers with variable output via panel-mounted screw terminals
- Operating temperature range from 0°C to 50°C
技術規格
Add-On-Card & Module Type
Raspberry Pi Audio DIGIAMP+ HAT
Product Range
-
For Use With
Raspberry Pi Computer w/40-Pin GPIO Header
SVHC
No SVHC (27-Jun-2024)
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Great Britain
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Great Britain
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.058
