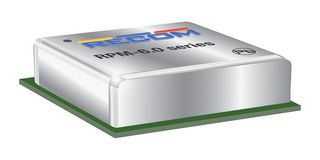

RPM5.0-6.0-CT

RPM-6.0 series is a 6A single output non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 99%, the device can operate at full load in ambient temperatures as high as +90°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.

• 3.3VDC output voltage, 4 to 15VDC input voltage
• High power density (L*W*H = 12.19mm x 12.19mm x 3.75mm)
• Wide operating temperature range from -40°C to 90°C at full load
• Thermally and EMI enhanced 25 pin LGA package
• Compact DOSA compatible footprint
• Low profile
• Internal operating frequency of 2.4MHz
• Designed to meet EN62368-1 standard
• Short circuit protection, overcurrent protection, overtemperature protection, undervoltage lockout
• Metal case, FR4 (UL94 V-0) PCB, copper with electrolytic nickel-gold solder pads
